GATES part description
Product Description

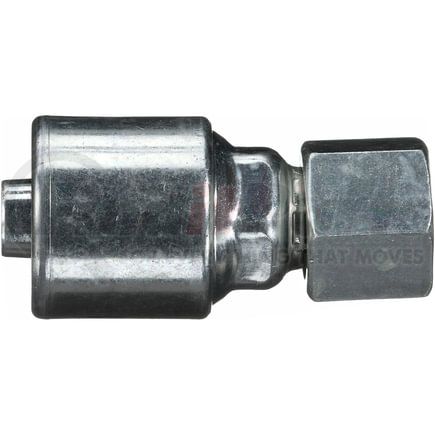

Female Flat-Face O-Ring Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel |
| Industrial Description | 20G-20FFORX |
| Thread Size | 1 11/16-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 41 MM |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 1.97 IN |
| Length | 4.29 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 50 MM |
| Length | 109 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075478300 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
