GATES G25230-1012 Part Description
Manufacturer
Product Description

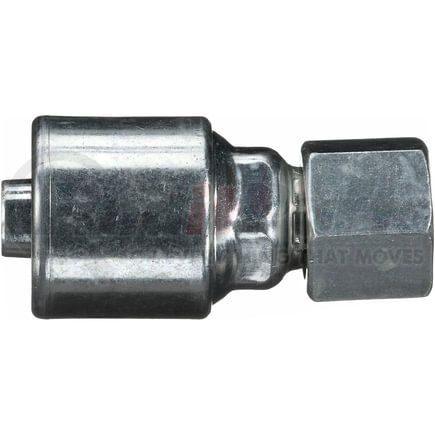

Female Flat-Face O-Ring Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25230-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel |
| Industrial Description | 10G-12FFORX |
| Thread Size | 1 3/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 24 MM |
| Nut Hex Size | 36 MM |
| Cut-Off Length | 1.56 IN |
| Length | 3.03 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 39.5 MM |
| Length | 77 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053173383 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25230-1012 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA12FR10 |
| Caterpillar | 124-2120 |
| Dayco | 108722 |
| Eaton | 10Z-S72, A30-10X12 |
| Goodyear | 14700-1012, B2-OFFX-1012, UC-OFFX-1012 |
| Kurt Hydraulics | FFX-10-12 |
| N/A | 04032248, E10-12FF, C12222411-1010, 210-1JFSX-12, M22411-10-12 |
| NAPA | G25230-1012 |
| Parker | 1JC43-12-10, 1JS43-12-10, 1JSHY-12-10, 1JSHY-12-10-SM |
| Weatherhead | 10MS72, 10US72, 10ZS72, 10M-S72, 10U-S72 |
