GATES G25181-1010 Part Description
Manufacturer
Product Description

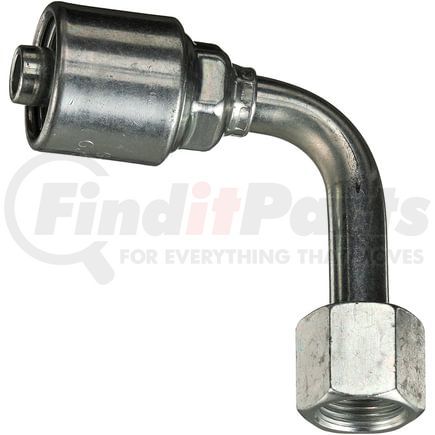

Female JIC 37 Flare Swivel - 90 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25181-1010 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Industrial Description | 10G-10FJX90L |
| Thread Size | 7/8-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 27 MM |
| Drop Length | 2.76 IN |
| Cut-Off Length | 1.91 IN |
| Length | 3.38 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 90 |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Drop Length | 70 MM |
| Cut-Off Length | 48.4 MM |
| Length | 85.9 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053396225 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25181-1010 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA10FJC10 |
| Caterpillar | 124-2032 |
| Dayco | 108652 |
| Goodyear | 14440-1010, B2-JCFX90L-1010, UC-JCFX90L-1010 |
| Kurt Hydraulics | FJX90L-10-10 |
| N/A | 04032014 |
| NAPA | G25181-1010 |
| Parker | 14143-10-10, 141HY-10-10 |
| Weatherhead | 10U650, 10Z650, 10U-650, 10Z-650 |
