(888) 312-8812 Login SignupGATES G25175-0810X Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)
Tap to view 3 more
$36.99
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

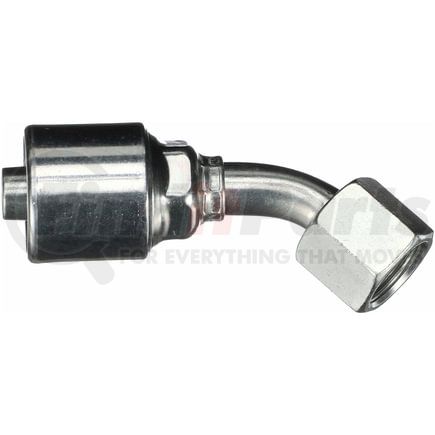

GATES G25175-0810X Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25175-0810X Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 8G-10FJX45SXBULK |
| Thread Size | 7/8-14 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 27 MM |
| Drop Length | .63 IN |
| Cut-Off Length | 2.34 IN |
| Length | 3.81 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | 45 |
| Swivel | Yes |
| Inside Diameter | 12.7 MM |
| Drop Length | 16 MM |
| Cut-Off Length | 59.4 MM |
| Length | 96.8 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00770075319351 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25175-0810X Cross References
| Brand | Part Number |
|---|---|
| N/A | 04031949 |
| NAPA | G25175-0810X |
