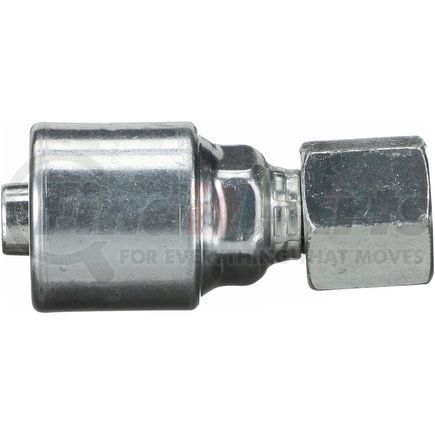

(888) 312-8812 Login SignupGATES G25170-1012X Female JIC 37 Flare Swivel (MegaCrimp)
Tap to view 3 more
$26.99
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G25170-1012X Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25170-1012X Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel |
| Industrial Description | 10G-12FJX XBULK |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 24 MM |
| Nut Hex Size | 32 MM |
| Cut-Off Length | 1.73 IN |
| Length | 3.2 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 43.9 MM |
| Length | 81.4 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00770075445531 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25170-1012X Cross References
| Brand | Part Number |
|---|---|
| N/A | 04031886 |
| NAPA | G25170-1012X |
| Parker | 106HY-12-10-BULK |
| Weatherhead | 10U612CT, 10W-612-CT, 10U-612-CT |
