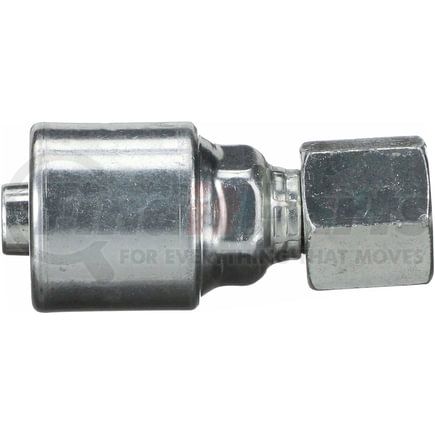

(888) 312-8812 Login SignupGATES G25170-0506 Female JIC 37 Flare Swivel (MegaCrimp)
Tap to view 3 more
MSRP: $16.71
$1599
Save $0.72
Limited availability at this price!
In Stock
Get it by Friday, Jul 31
GATES G25170-0506 Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25170-0506 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel |
| Industrial Description | 5G-6FJX |
| Thread Size | 9/16-18 |
| Inside Diameter | .3125 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 17 MM |
| Nut Hex Size | 19 MM |
| Cut-Off Length | 1.4 IN |
| Length | 2.5 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Inside Diameter | 7.9 MM |
| Cut-Off Length | 35.6 MM |
| Length | 63.6 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053171785 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25170-0506 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 035-0656, 124-1953 |
| Dayco | 108069, 111554 |
| Goodyear | 14400-0506, B2-JCFX-0506 |
| N/A | 04031904 |
| NAPA | G25170-0506 |
| Parker | 10643-06-05, 10643-6-5, 106HY-6-5, 10655-6-5, 10656-6-5 |
| Weatherhead | 05E606, 05EE606, 3903-05546, 05E-606 |
