(888) 312-8812 Login SignupGATES G25165-1012 CL12-10G-12MJ
Tap to view 3 more
$3649
Limited availability at this price!
In Stock
Get it by Thursday, Jul 30

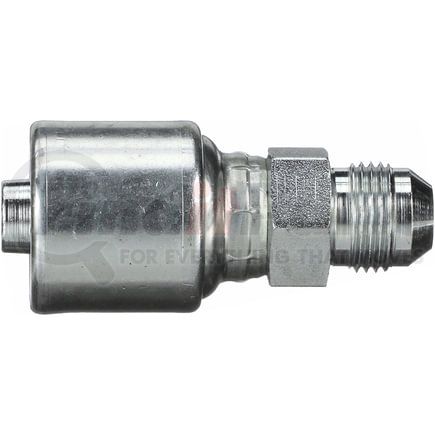

GATES G25165-1012 Part Description
Manufacturer
Product Description
Male JIC 37 Flare (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25165-1012 Specifications
Product Attributes
| Coupling Description | MegaCrimp Male JIC 37 Flare |
| Industrial Description | 10G-12MJ |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 27 MM |
| Cut-Off Length | 1.71 IN |
| Length | 3.19 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 43.5 MM |
| Length | 81 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053171747 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25165-1012 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1AA12MJ10 |
| Dayco | 108223, HY10-12MJ, DC10-12MJ |
| Eaton | 10Z-512 |
| Goodyear | 14450-1012, B2-JCM-1012 |
| Kurt Hydraulics | MJ-10-12 |
| N/A | 04031850, E10-12MJ, M12510-10-12 |
| NAPA | G25165-1012 |
| Parker | 10343-12-10, 103HY-12-10 |
| Weatherhead | 10U512, 10Z512, 10U-512, 10W-512 |
