GATES G20366-1616X Part Description
Manufacturer
Product Description

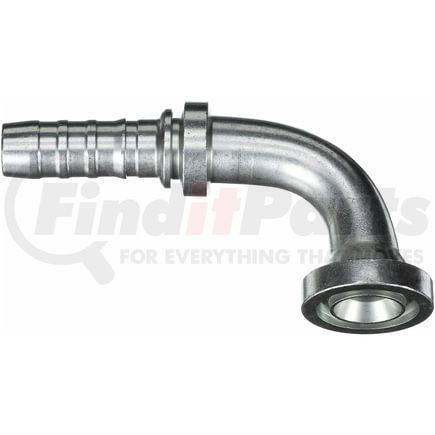

Code 62 O-Ring Flange Heavy - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20366-1616X Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 62 O-Ring Flange Heavy - 90 Bent Tube |
| Industrial Description | 16GS-16FLH90-120XBULK |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 6000 PS |

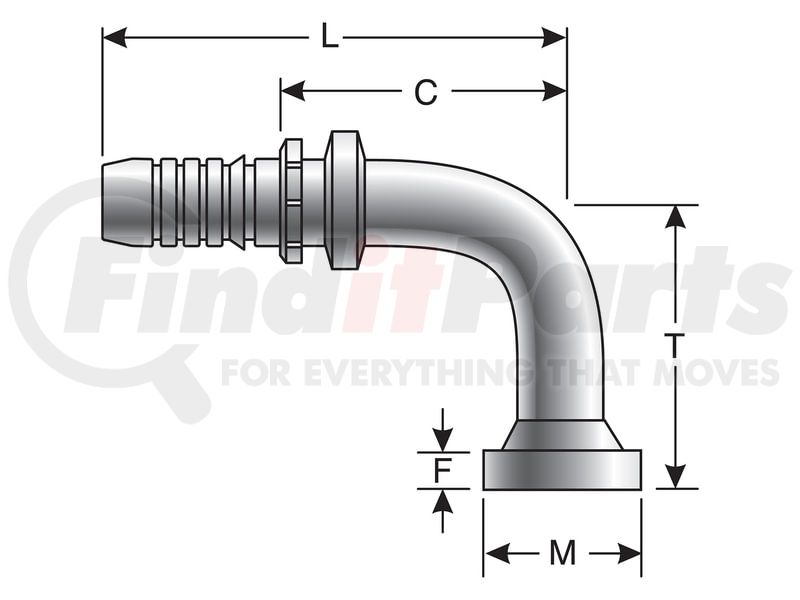

| Flange Thickness | .38 in |
| Flange Diameter | 1.88 IN |
| Drop Length | 4.72 IN |
| Cut-Off Length | 3.04 IN |
| Length | 5.28 IN |
| Inside Diameter | 25.4 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 47.8 MM |
| Drop Length | 119.9 MM |
| Cut-Off Length | 77.2 MM |
| Length | 134.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053659801 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20366-1616X Cross References
| Brand | Part Number |
|---|---|
| N/A | 04031095 |
| NAPA | G20366-1616X |
