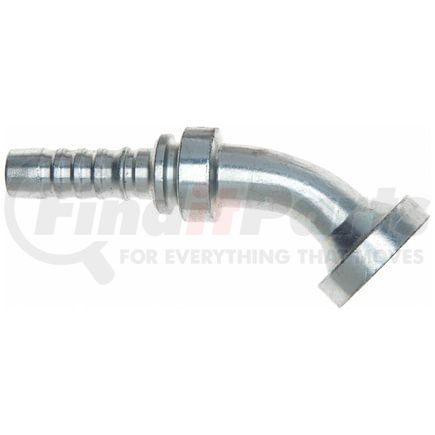

Name: Gates G20357-1620 Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)
SKU: g203571620
Price: 125.49 USD
Availability: InStock

GATES part description

Product Description

Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral)

Features & Benefits

"Bite-the-wire" crimp for improved coupling retention
“Bite-the-wire” crimp for improved coupling retention
Tested to an industry-leading 1,000,000 impulse cycles
+250degF temperature capability for longer assembly life
+250°F temperature capability for longer assembly life
Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard

Product Attributes

Maximum Working Pressure	6000 PS
Flange Thickness	.41 in
Flange Diameter	2.13 IN
Drop Length	1.5 IN
Cut-Off Length	3.98 IN
Length	6.22 IN
Coupling Description	GlobalSpiral Code 62 O-Ring Flange Heavy - 45 Bent Tube
Industrial Description	16GS-20FLH45M
Inside Diameter	1 IN
Hydraulic Hose Recommendation	All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Inside Diameter	25.4 MM
Flange Thickness	10.4 MM
Flange Diameter	54.1 MM
Drop Length	38.1 MM
Cut-Off Length	101.2 MM
Length	158 MM
