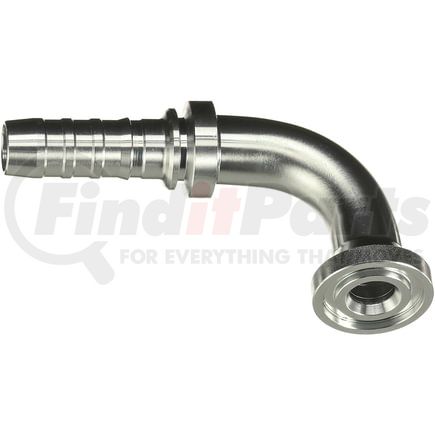

(888) 312-8812 Login SignupGATES G20315-0812 8GS 12FL90M
Tap to view 3 more
$6349
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 7
GATES G20315-0812 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20315-0812 Specifications
Product Attributes
| Length | 3.46 IN |
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 8GS-12FL90M |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .27 in |
| Flange Diameter | 1.5 IN |
| Drop Length | 2.28 IN |
| Cut-Off Length | 1.98 IN |
| Inside Diameter | 12.7 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 38.1 MM |
| Drop Length | 57.9 MM |
| Cut-Off Length | 50.4 MM |
| Length | 87.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053302554 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20315-0812 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1B12FLB8, 4S12FLB8 |
| Caterpillar | 5S-9638, 7X-4823 |
| Dayco | 100328, 1B12FL8 |
| Goodyear | 28350-0812, 29350-0812, S4-FL90-0812 |
| N/A | 04031002, 4039-1208, M23391-08-12 |
| NAPA | G20315-0812 |
| Parker | 11971-12-08, 11971-12-8 |
| Weatherhead | 43008EG72, 43008UG72, 43008E-G72, 43008U-G72 |
