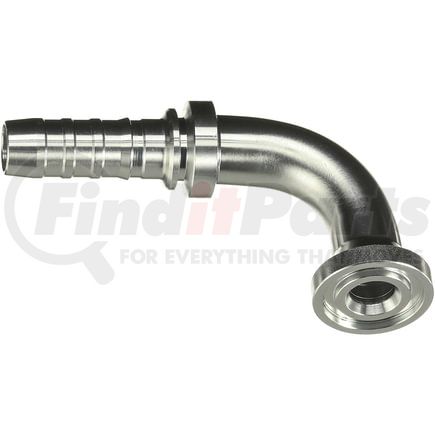

(888) 312-8812 Login SignupGATES G20314-2020 20GS 20FL90S
Tap to view 3 more
$12699
Limited availability at this price!
In Stock
Get it by Thursday, Aug 6
GATES G20314-2020 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20314-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 20GS-20FL90S |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 4000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Drop Length | 2.68 IN |
| Cut-Off Length | 3.7 IN |
| Length | 6.5 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Drop Length | 68.1 MM |
| Cut-Off Length | 93.9 MM |
| Length | 165.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053437737 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20314-2020 Cross References
| Brand | Part Number |
|---|---|
| Caterpillar | 3S-8573 |
| Dayco | 102172 |
| N/A | 04030982, N20-20FL90-071, M23391-20-20, VS20-20FL90-071, M83391-20-20 |
| NAPA | G20314-2020 |
| Parker | 11971-20-20 |
| Weatherhead | 43020EG80, 43020EG80L31, 43020UG80, 43020UG80L31, 43020E-G80, 43020E-G80L31, 43020U-G80L31, 43020U-G80 |
