(888) 312-8812 Login SignupGATES G20307-0608 Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral)
Tap to view 2 more
$4899
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 13
GATES G20307-0608 Part Description
Manufacturer
Product Description

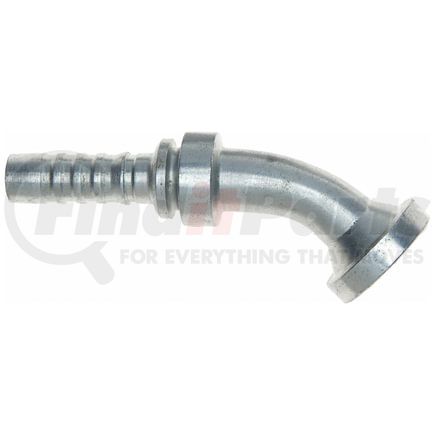

Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20307-0608 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 45 Bent Tube |
| Industrial Description | 6GS-8FL45M |
| Inside Diameter | .375 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Maximum Working Pressure | 5000 PS |
| Flange Thickness | .27 in |
| Flange Diameter | 1.19 IN |
| Drop Length | .75 IN |
| Cut-Off Length | 2.25 IN |
| Length | 3.66 IN |
| Inside Diameter | 9.5 MM |
| Flange Thickness | 6.9 MM |
| Flange Diameter | 30.2 MM |
| Drop Length | 19.1 MM |
| Cut-Off Length | 57.2 MM |
| Length | 93 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00072053437720 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20307-0608 Cross References
| Brand | Part Number |
|---|---|
| Dayco | 100201 |
| N/A | 04030944 |
| NAPA | G20307-0608 |
