(888) 312-8812 Login SignupGATES G20302-2020 Code 61 O-Ring Flange - 22 1/2 Bent Tube (GlobalSpiral)
Tap to view 2 more
$18249
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 7
GATES G20302-2020 Part Description
Manufacturer
Product Description

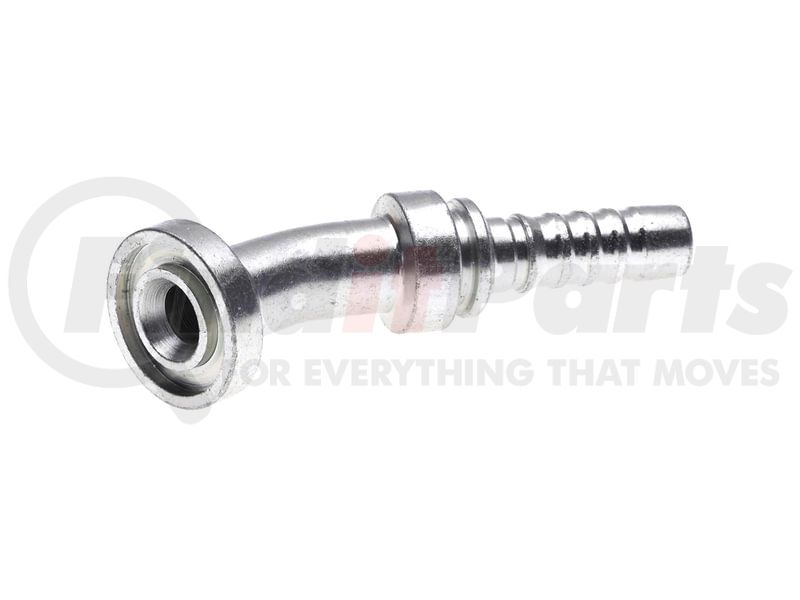

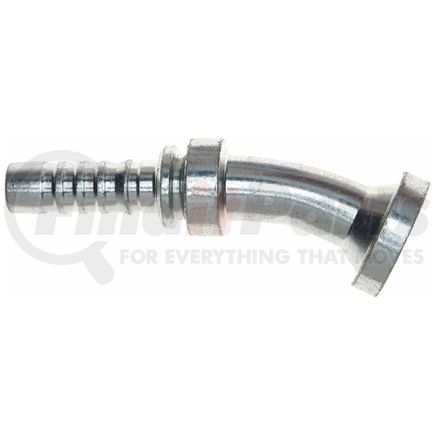

Code 61 O-Ring Flange - 22 1/2 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20302-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Code 61 O-Ring Flange - 22 1/2 Bent Tube |
| Industrial Description | 20GS-20FL22M |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |

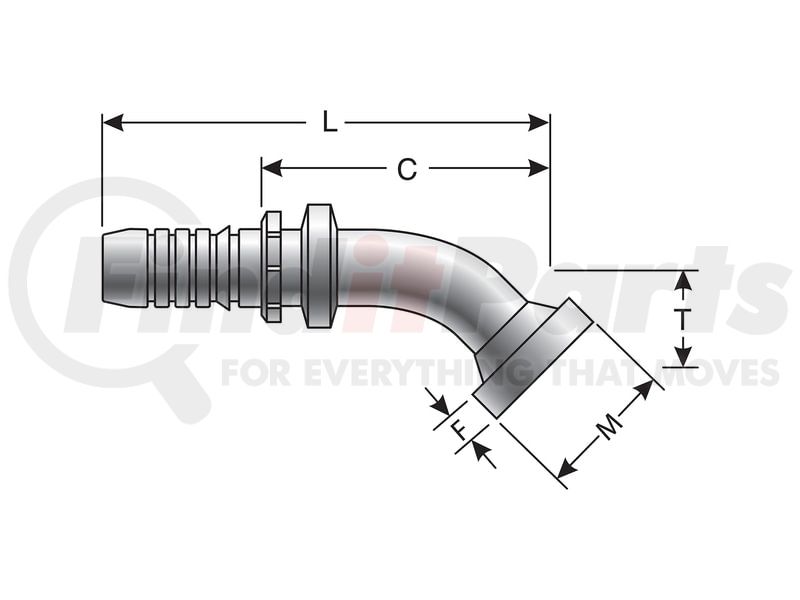

| Maximum Working Pressure | 4000 PS |
| Flange Thickness | .32 in |
| Flange Diameter | 2 IN |
| Drop Length | .59 IN |
| Cut-Off Length | 4.21 IN |
| Length | 7.01 IN |
| Inside Diameter | 31.8 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 50.8 MM |
| Drop Length | 15 MM |
| Cut-Off Length | 106.9 MM |
| Length | 178.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053474800 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20302-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4S20FLD20 |
| Dayco | 100144, 100144U, 102114 |
| Goodyear | 28330-2020, S4-FL22-2020 |
| N/A | 04030933, M83321-20-20 |
| NAPA | G20302-2020 |
| Parker | 11671-20-20 |
| Weatherhead | 43020EH04, 43020UH04, 43020E-H04, 43020U-H04 |
