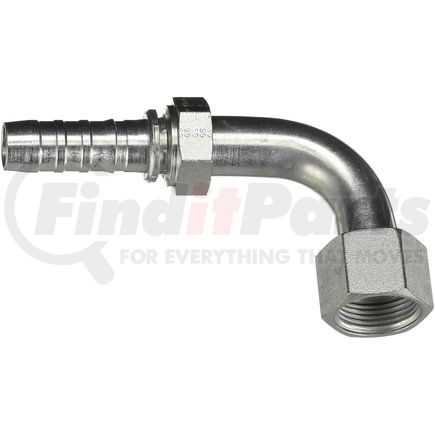

(888) 312-8812 Login SignupGATES G20240-1010 Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Tap to view 3 more
$7999
Limited availability at this price!
In Stock
Get as soon as Monday, Sep 28
GATES G20240-1010 Part Description
Manufacturer
Product Description
Female Flat-Face O-Ring Swivel - 90 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20240-1010 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Industrial Description | 10GS-10FFORX90M |
| Thread Size | 1-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 30 MM |
| Drop Length | 1.85 IN |
| Cut-Off Length | 2.23 IN |
| Length | 4.21 IN |
| Inside Diameter | 15.9 MM |
| Drop Length | 47 MM |
| Cut-Off Length | 56.7 MM |
| Length | 106.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053399387 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20240-1010 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA10FRB10, 4SA10FRB10047 |
| Caterpillar | 8T-1713 |
| Continental Belt | SG-OFFX90-1010 |
| Goodyear | 29715-1010, S4-OFFX90S-1010 |
| N/A | 04030877, C12422493-1010M |
| NAPA | G20240-1010 |
| Parker | 1J571-10-10, 1J570-10-10 |
