GATES G20230-2020 Part Description
Manufacturer
Product Description

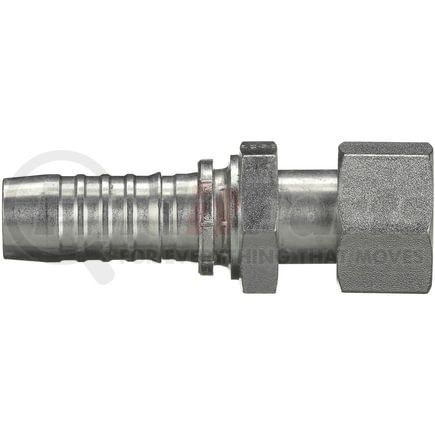

Female Flat-Face O-Ring Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- +250?F temperature capability for longer assembly life
- +250˚F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20230-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female Flat-Face O-Ring Swivel |
| Industrial Description | 20GS-20FFORX |
| Thread Size | 1 11/16-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 50 MM |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 2.24 IN |
| Length | 5.04 IN |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 56.9 MM |
| Length | 128 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053278521 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20230-2020 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA20FR20, 1EA20FR20, 1ZA20FR20, 4SA20FR20, 6SA20FR20 |
| Caterpillar | 155-2857 |
| Continental Belt | SG-OFFX-2020 |
| Dayco | 101345, 102059, 1BA20FR20 |
| Goodyear | 28700-2020, 30700-2020, DG-OFFX-2020, S4-OFFX-2020 |
| Kurt Hydraulics | FFX-20-20-JJ |
| N/A | T7800-2027, 04030836, N20-20FF, C12422411-2020, 4005-2020, 620-1WFSX-20, M82411-20-20, T780-2027, 6005-2020, M82412-20-20, T9800-2027, T980-2027 |
| NAPA | G20230-2020 |
| Parker | 1JS71-20-20, 1JS73-20-20, 1JS78-20-20, 1JS79-20-20, 1JC77-20-20, 1JS78-20-20-SM, 1JS77-20-20 |
| Weatherhead | 43020ES80, 43020US80, 47020EES80, 47020ES80, 4SP20WJ80, 6SP20WJ80, 43020E-S80, 43020U-S80, 47020E-S80, 4SP20W-J80 |
