GATES G20174-1212 Part Description
Manufacturer
Product Description

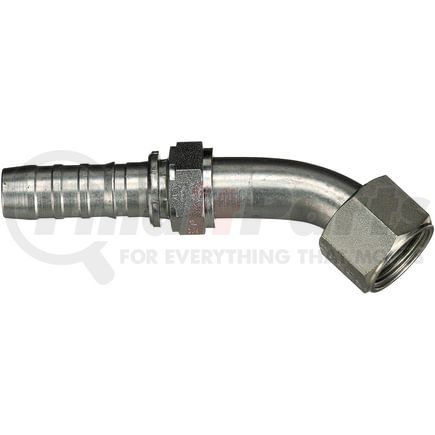

Female JIC 37 Flare Swivel - 45 Bent Tube (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20174-1212 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel - 45 Bent Tube |
| Industrial Description | 12GS-12FJX45S |
| Thread Size | 1 1/16-12 |
| Inside Diameter | .75 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Nut Hex Size | 1.25 IN |
| Drop Length | .83 IN |
| Cut-Off Length | 3.11 IN |
| Length | 5.12 IN |
| Inside Diameter | 19.1 MM |
| Drop Length | 21.1 MM |
| Cut-Off Length | 79 MM |
| Length | 130.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053399325 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20174-1212 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA12FJA12, 1EA12FJA12, 1GA12FJA12, FJ9127-1212S, 4SA12FJA12 |
| Caterpillar | 146-8533 |
| Continental Belt | SG-JCFX45-1212 |
| Dayco | 102025, 1BA12FJA12, FJ9799-1212S |
| Goodyear | 28420-1212, 29420-1212, 30420-1212, S4-JCFX45-1212, S6-JCFX45-1212, S6-JCFX45-2020 |
| N/A | 04030739, N12-12FJ45, 4002-1212, M82542-12-12, 6002-1212 |
| NAPA | G20174-1212 |
| Parker | 13771-12-12, 13777-12-12 |
| Weatherhead | 43012E692, 43012U692, 47012E692, 47012EE692, 4SP12W692, 43012U-692 |
