GATES G20170-1010X Part Description
Manufacturer
Product Description
Female JIC 37 Flare Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20170-1010X Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female JIC 37 Flare Swivel |
| Industrial Description | 10GS-10FJXMM XBULK |
| Thread Size | 7/8-14 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |

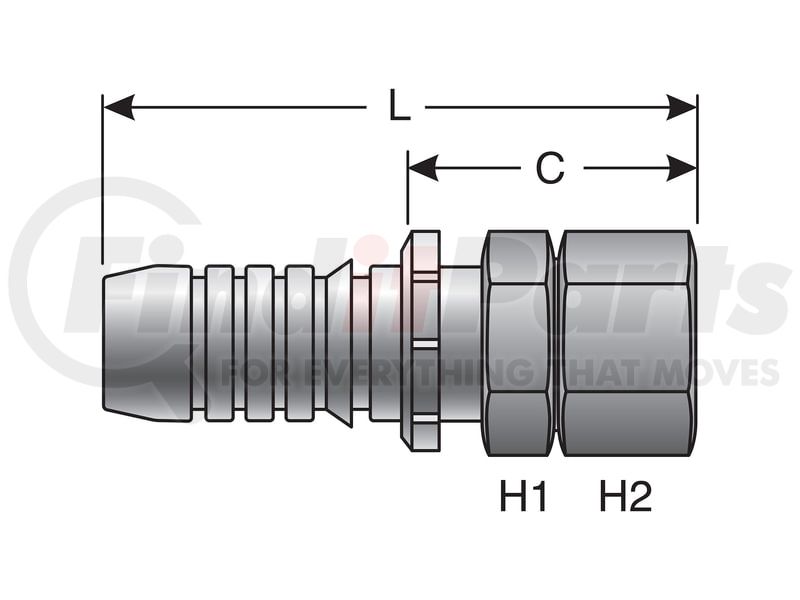

| Stem Hex Size | 1 IN |
| Nut Hex Size | 1.0625 IN |
| Cut-Off Length | 1.8 IN |
| Length | 3.68 IN |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 45.7 MM |
| Length | 93.5 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | N |
| UPC | 00072053659092 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20170-1010X Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030728 |
| NAPA | G20170-1010X |
