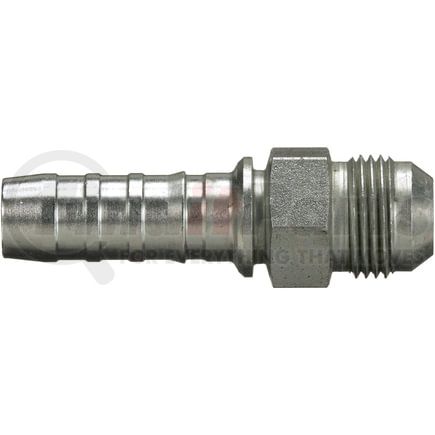

Gates G20165-1616 - Male JIC 37 Flare (GlobalSpiral)
$4099
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male JIC 37 Flare (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral Male JIC 37 Flare |
| Industrial Description | 16GS-16MJ |
| Thread Size | 1 5/16-12 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.375 IN |
| Cut-Off Length | 1.86 IN |
| Length | 4.09 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 47.2 MM |
| Length | 103.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053297447 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
- Aeroquip 1BA16MJ16
- Aeroquip FJ9917-1616S
- Parker 10371-16-16
- Dayco 100862
- Dayco 102363
- Dayco 1BA16MJ16
- Dayco FJ9917-1616S
- Weatherhead 43016E516
- Weatherhead 43016U516
- Goodyear 28450-1616
- Goodyear 29450-1616
- Goodyear 30450-1616
- Goodyear DG-JCM-1616
- Goodyear S4-JCM-1616
- NAPA G20165-1616
- Kurt Hydraulics MJ-16-16-W
- Kurt Hydraulics MJ-16-16-WHP
