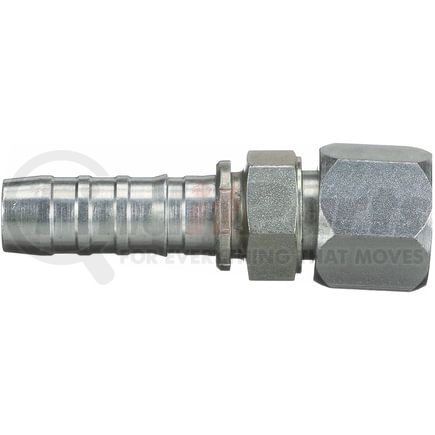

(888) 312-8812 Login SignupGATES G20140-2020 Female MegaSeal Swivel (GlobalSpiral)
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G20140-2020 Part Description
Manufacturer
Product Description
Female MegaSeal Swivel (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20140-2020 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Female MegaSeal Swivel |
| Industrial Description | 20GS-20FMX |
| Thread Size | 1 5/8-12 |
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.875 IN |
| Nut Hex Size | 2 IN |
| Cut-Off Length | 2.67 IN |
| Length | 5.36 IN |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 67.8 MM |
| Length | 136.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053454666 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20140-2020 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G20140-2020 |
