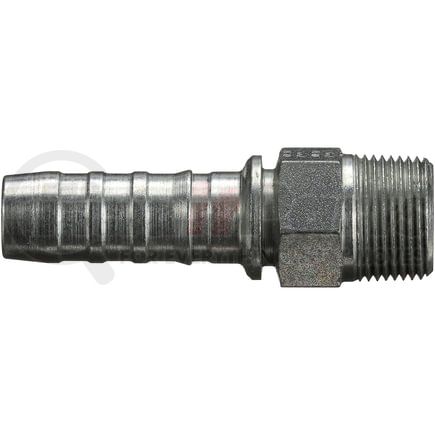

GATES G20100-1616 Part Description
Manufacturer
Product Description
Male Pipe (NPTF - 30 Cone Seat) (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G20100-1616 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Male Pipe (NPTF - 30 Cone Seat) |
| Industrial Description | 16GS-16MP |
| Thread Size | 1-11 1/2 |
| Inside Diameter | 1 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Stem Hex Size | 1.375 IN |
| Cut-Off Length | 1.94 IN |
| Length | 4.17 IN |
| Inside Diameter | 25.4 MM |
| Cut-Off Length | 49.2 MM |
| Length | 105.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00072053297454 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G20100-1616 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 1BA16MP16, FJ9781-1616S, 1W16MP16, 4SA16MP16 |
| Caterpillar | 221-0570, 7S-2371, 6V-2448 |
| Continental Belt | SG-NPM-1616 |
| Dayco | 102046, 1BA16MP16, FJ9781-1616S |
| Goodyear | 28615-1616, 29615-1616, 32615-1616, 36615-1616, DG-NPM-1616, S4-NPM-1616 |
| Kurt Hydraulics | MP-16-16-W, MP-16-16-WHP |
| N/A | T7090-1616, 04030638, N16-16MJ, C12412810-1616, 4020-1616, 616-1W-116, M72810-16-16, 616-1W-216, N16-16MP, C12412811-1616, 6020-1616 |
| NAPA | G20100-1616 |
| Parker | 10171-16-16, 10173-16-16, 10178-16-16 |
| Weatherhead | 43016E120, 43016U116, 47016E120, 4SP16W116, 43016E-116, 43016U-116, 47016E-116 |
