(888) 312-8812 Login SignupGATES 85952 G3H High-Temp 2-Fiber Braid Hose - SAE 100R3
$22899
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Feb 13
GATES 85952 Part Description
Manufacturer
Product Description

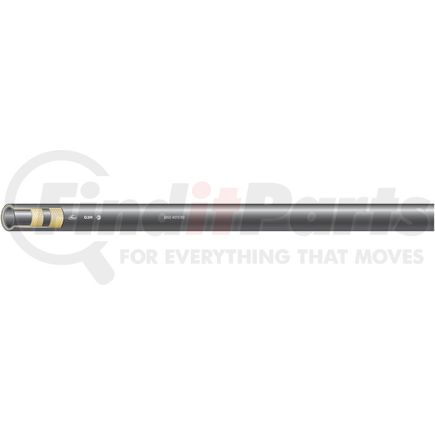

G3H High-Temp 2-Fiber Braid Hose - SAE 100R3
Features & Benefits
- For use with GLX Couplings [G44 Series] and MegaCrimp Couplings [G25 Series]
- Meets or exceeds requirements of SAE 100R3
- Temperature Range: Hydraulic Oil Lines: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant; +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)
GATES 85952 Specifications
Product Attributes
| Product Type | G3H High-Temp 2-Fiber Braid Hose - SAE 100R3 |
| Industrial Description | 6G3HX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1125 PS |
| Burst Pressure | 4500 PS |
| Temperature Rating | Oil Lines: -40 Deg. F to +275 Deg. F (Constant), up to +300 Deg. F (Intermittent) |
| Length | 25 FT |
| Dash Size | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .75 IN |
| Bend Radius | 4 IN |
| Vacuum Rating | 28 INHG |
| Tube Description | Black, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Fiber Braids |
| Cover Material | Synthetic Rubber - Neoprene - Type A |
| Cover Type | Type A - Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R3 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00072053786910 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
