GATES 85650 Part Description
Manufacturer
Product Description

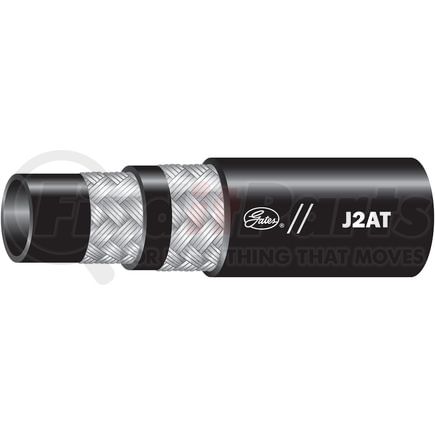

J2AT 2-Wire Braid Jack Hose - 10,000 Static Pressure Only
Features & Benefits
- For use with MegaCrimp Male Pipe Long Nose Couplings on jack end of assembly for full-thread engagement [G25 Series]
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +120 Deg. F (-40 Deg. C to +49 Deg.)
GATES 85650 Specifications
Product Attributes
| Product Type | J2AT 2-Wire Braid Jack Hose - 10,000 Static Pressure Only |
| Industrial Description | 4J2ATX50FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 10000 PS |
| Burst Pressure | 20000 PS |
| Temperature Rating | -40 Deg. F to +120 Deg. F (-40 Deg. C to +49 Deg. C) |
| Length | 50 FT |
| Dash Size | 4 |
| Inside Diameter | .25 IN |
| Outside Diameter | .59 IN |
| Bend Radius | 2 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp Male Pipe Long Nose Couplings on Jack End of Assembly for Engagement |
| SAE Standard | N/A |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Stock Status | N |
| UPC | 00072053319231 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 85650 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030076 |
| NAPA | 85650 |
