GATES 85475 - Hydraulic Hose - EFG6K Spiral Wire Hose - SAE 100R15 - MegaTuff Cover
$2,52849
MSRP: $2,929.23
Save: $400.74
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

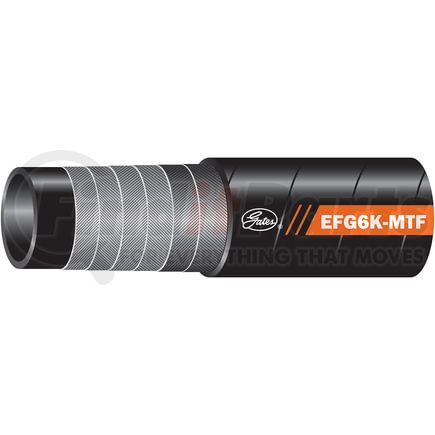

EFG6K Spiral Wire Hose - SAE 100R15 - MegaTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral MAX Pressure Couplings [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]
- Tested to industry-leading 1,000,000 impulse cycles
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
| Product Type | EFG6K Spiral Wire Hose - SAE 100R15 - MegaTuff Cover |
| Industrial Description | 16EFG6K-MTFX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Extremely High Pressure |
| Maximum Working Pressure | 6000 PS |
| Burst Pressure | 24000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 25 FT |
| 9941 | 16 |
| Inside Diameter | 1 IN |
| Outside Diameter | 1.53 IN |
| 9879 | 6 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel |
| Cover Material | Synthetic Rubber - Neoprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame, Oil, Abrasion & Weather Resistant - MegaTuff Cover |
| Cover Color | Black |
| 9856 | GlobalSpiral, Stainless Steel S |
| 9453 | 100R15 |
| 9954 | 856 4SH |
| 9953 | 3862 Type R15 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | US |
| UPC | 00072053508055 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
