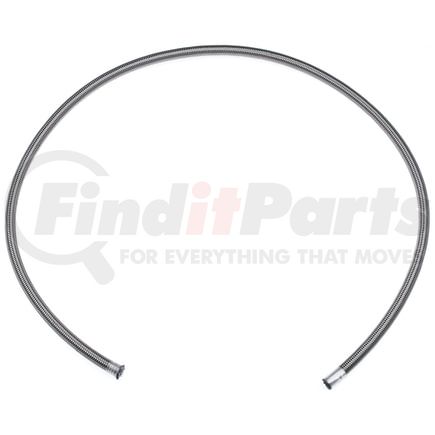

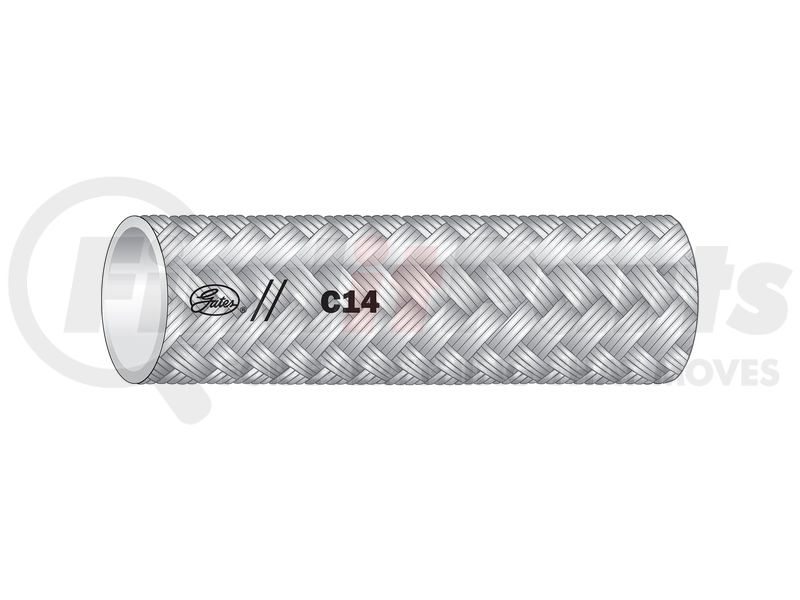

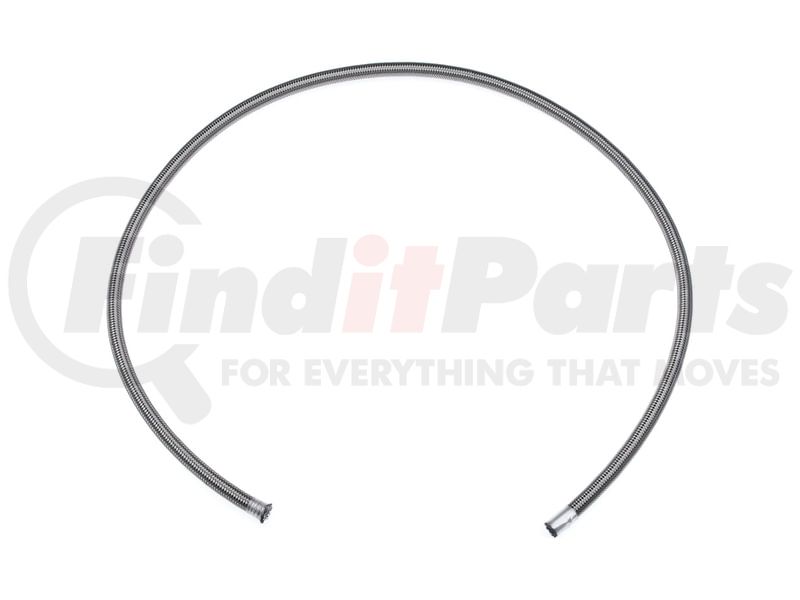

Gates 70812 - C14 PTFE Hose - SAE100R14 Type A - Non-Conductive
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
C14 PTFE Hose - SAE100R14 Type A - Non-Conductive
Features & Benefits
- For use with Brass and Stainless Steel C14 Couplings [G40 Series]
- Temperature Range: Dynamic: -65 Deg. F to +400 Deg. F (-54 Deg. C to +204 Deg. C); Static: -65 Deg. F to +450 Deg. F (-54 Deg. C to +232 Deg. C)
- NOTE: Electrostatic Discharge: Many applications involving PTFE hose do not require a conductive tube
- NOTE: But you must review the potential for electrostatic discharge for every application and be aware that static electricity can be hazardous
- NOTE: In those cases where electrostatic discharge can occur, conductive PTFE hose with a conductive tube (Gates C14CT) is recommended
Product Attributes
| Product Type | C14 PTFE Hose - SAE 100R14 Type A - Non-Conductive |
| Industrial Description | 12C14XCTN |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 800 PS |
| Burst Pressure | 2600 PS |
| Temperature Rating | -65 Deg. F to +400 Deg. F (Dynamic); -65 Deg. F to +450 Deg. F (Static) |
| Length | 150 FT |
| Dash Size | 12 |
| Inside Diameter | .625 IN |
| Outside Diameter | .79 IN |
| Working Pressure | 800 PS |
| Bend Radius | 7.8 IN |
| Vacuum Rating | 20 INHG |
| Tube Description | Non-Conductive White, Smooth Bore Polytetrafluoroethylene |
| Hose Material | PTFE - Type A |
| Reinforcement Material | One Braid of 300 Series Stainless Steel Wire - 304 Stainless |
| Cover Color | Silver |
| Cover Material | 300 Series Stainless Steel Wire |
| Cover Type | Braided |
| Coupling Recommendation | C14 Couplings |
| SAE Standard | 100R14 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 3917390010 |
| Country of Origin (Primary) | US |
| UPC | 00072053204360 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
