GATES 70573 Part Description
Manufacturer
Product Description

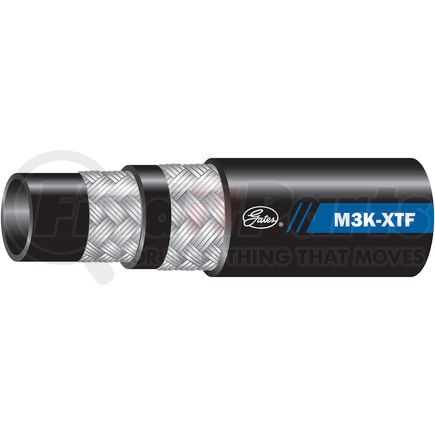

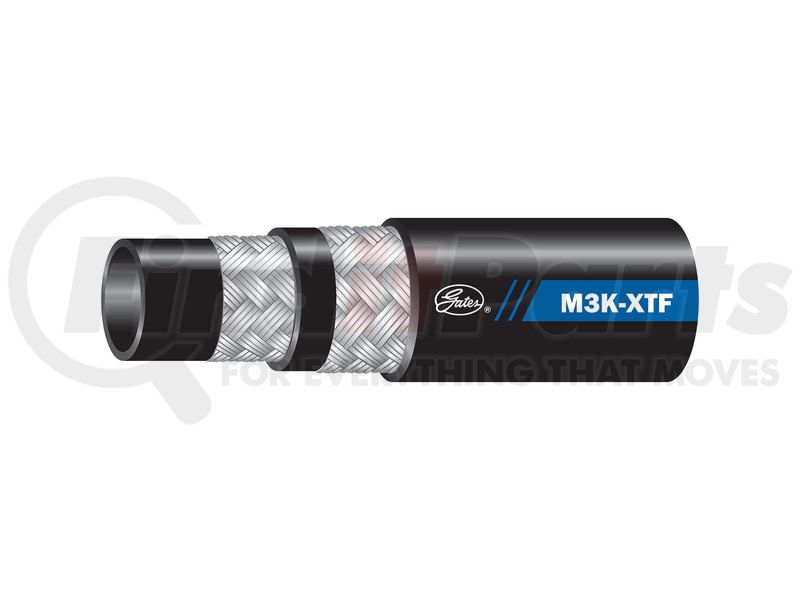

Global M3K Mega3000 Hose - SAE 100R17 - XtraTuff Cover
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], MegaCrimp Couplings [G25 Series], Power Crimp Couplings (-3 Only) and Stainless Steel Braid Couplings [G17 Series]
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing
- Tested to industry-leading 600,000 impulse cycles
- XtraTuff hose lasts up to 25 times longer than standard hose
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Rated at 3250 PSI working pressure
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES 70573 Specifications
Product Attributes
| Product Type | Global M3K Mega3000 Hose - SAE 100R17 - XtraTuff Cover |
| Industrial Description | 12M3K-XTFXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3250 PS |
| Burst Pressure | 13000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 220 FT |
| Dash Size | 12 |
| Inside Diameter | .75 IN |
| Outside Diameter | 1.15 IN |
| Bend Radius | 3.8 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant - XtraTuff Cover |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| SAE Standard | 100R17 |
| EN Standard | 857 1SC |
| ISO Standard | 18752 Grade B, 11237 R17 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Stock Status | S |
| UPC | 00072053436631 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70573 Cross References
| Brand | Part Number |
|---|---|
| ContiTech | XCP3-12 |
| Dayco | AM12 |
| N/A | 04029932 |
| NAPA | 70573 |
| Parker | 451TC-12, 451TC-12-BX, 451TC-12-RL, 387TC-12 |
