Gates 70542 - 6C5DXREEL
$1199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description

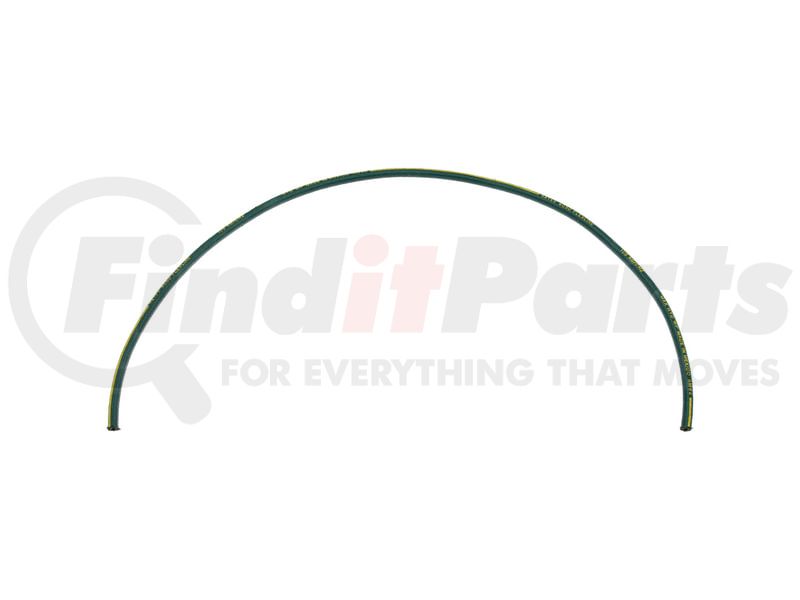

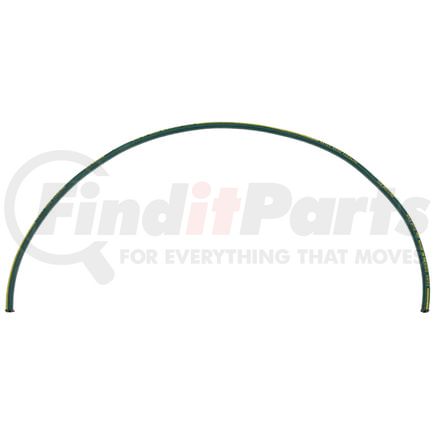

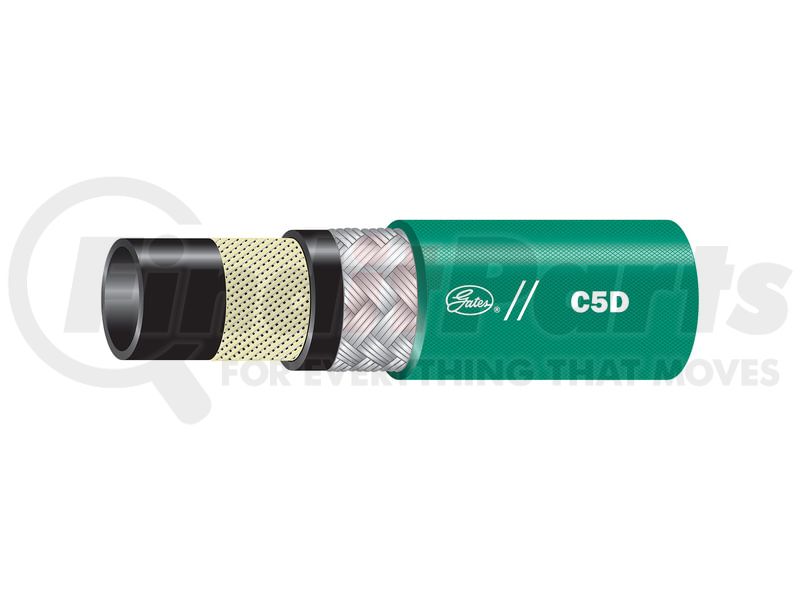

C5D High-Temp Multi-Fluid Hose
Features & Benefits
- For use with C5 and C5X Field Attachable Couplings [G34 Series]
- Black, oil and heat-resistant, synthetic rubber (CPE) tube
- Green cover for easy identification, oil and mildew resistant, polyester braid impregnated with synthetic rubber
- Meets or exceeds DOTFMVSS 106-74 Type All, SAE J1402 Type All and SAE J1405 and fuel resistance of SAE J30R2 (-4 to -12)
- Temperature Range: -40 Deg. F to +300 Deg. F (-40 Deg. C to +149 Deg. C); Air Only: +250 Deg. F (+121 Deg. C); Phosphate Esters: up to +212 Deg. F (+100 Deg. C)
Product Attributes
| Product Type | C5D High-Temp Multi-Fluid Hose |
| Industrial Description | 6C5DXREEL |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 1500 PS |
| Burst Pressure | 6000 PS |
| Temperature Rating | -40 Deg. F to +300 Deg. F. Air to +250 Deg. F. Phosphate Esters to +212 Deg. F |
| Length | 385 FT |
| Dash Size | 6 |
| Inside Diameter | .3125 IN |
| Outside Diameter | .67 IN |
| Bend Radius | 1.8 IN |
| Tube Description | Black, Oil & Heat Reistant, Synthetic Rubber |
| Hose Material | CPE - Type J |
| Reinforcement Material | One Braid of High-Tensile Steel Wire Over One Braid of Polyester |
| Cover Material | Polyester Braid Impregnated w/ Synthetic Rubber |
| Cover Type | Oil & Mildew Resistant |
| Cover Color | Green |
| Coupling Recommendation | C5 Field Attachable |
| SAE Standard | J1402 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| Country of Origin (Primary) | MX |
| UPC | 00072053227758 |
| VMRS Code | 059032029 |
| UNSPSC | 40142000 |
Part Interchanges
