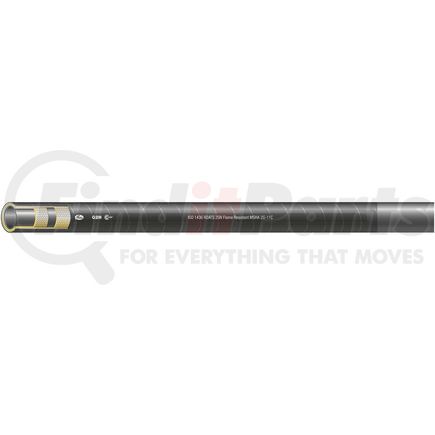

(888) 312-8812 Login SignupGATES 70242 Global G2H High-Temp 2-Wire Braid Hose - Type AT
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 70242 Part Description
Manufacturer
Product Description
Global G2H High-Temp 2-Wire Braid Hose - Type AT
Features & Benefits
- For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral Couplings [-20 G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series]
- Tested to industry-standard 600,000 impulse cycles
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) constant; +300 Deg. F (+149 Deg. C) intermittent (up to 10 percent of operating time)
GATES 70242 Specifications
Product Attributes
| Product Type | Global G2H High-Temp 2-Wire Braid Hose - Type AT |
| Industrial Description | 32G2HXCTN |
| Type | Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 1175 PS |
| Burst Pressure | 4700 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) |
| Length | 120 FT |
| Dash Size | 32 |
| Inside Diameter | 2 IN |
| Outside Diameter | 2.62 IN |
| Bend Radius | 25 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Two Braids, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - CSM - Type M |
| Cover Type | Type M - Flame & Oil Resistant |
| Cover Color | Black |
| Coupling Recommendation | GlobalSpiral Plus, Stainless Steel B |
| SAE Standard | 100R2 |
| EN Standard | 853 2SN |
| ISO Standard | 1436 2SN R2 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | IN |
| Stock Status | S |
| UPC | 00072053211726 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 70242 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | HR2SN-32X100CL, HR2SN32X100 |
| N/A | 04030051 |
| NAPA | 70242 |
| Parker | 301-32 |
| Weatherhead | H29032 |
