GATES part description

Product Description

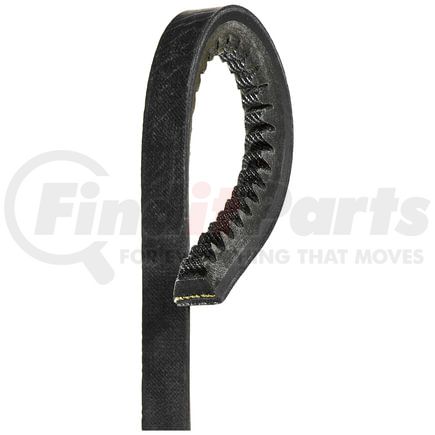

Super HC Narrow Section Molded Notch V-Belt

Features & Benefits

  • Promotes smoother, quieter operation, with less slippage and belt wear for improved belt life reducing expensive maintenance time
  • More compact design compared to classical section V-belts and optimally designed for high horsepower, space-constrained applications with small pulley diameter drives
  • Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
  • Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
  • Precision-ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves for even wear and extended belt life
  • Molded notches reduce and evenly distribute thermal and bending stresses and reduce noise
  • Patented Ethylene Elastomeric compound construction protects belt against heat, ozone and sunlight
  • Meets ARPM/RMA IP-3-2 oil and heat resistance standards and ARPM/RMA IP-3-3 static conductivity requirements
  • Temperature Range: -70 Deg. F to +250 Deg. F (-57 Deg. C to +121 Deg. C)
  • NOTE: Available in 3VX, 5VX, and 8VX cross-sections as well as Super HC Molded Notch PowerBand joined V-belts

Product Attributes

Type Narrow Section Molded Notch V-Belt
Cross Section Designation 5VX
Strand Quantity 1
Top Width .62 in
Outside Circumference 106 in
Construction Notched
9837 Yes
Belt Material Ethylene Elastomer (EE)
Cord Material Polyester
Top Width 16 mm
Outside Circumference 2692 mm

Additional Information

Harmonized Tariff Code (Schedule B) 4010391000
Country of Origin (Primary) US
UPC 00072053016239
VMRS Code 065005003
UNSPSC 26111801

Part Interchanges

GATES 5VX1060 Cross Reference

We have 1 alternatives for the 5VX1060 by GATES:
