(888) 312-8812 Login SignupGATES 3V500 Super HC Narrow Section Wrapped V-Belt
Tap to view 2 more
$2499
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jun 16
GATES 3V500 Part Description
Manufacturer
Product Description

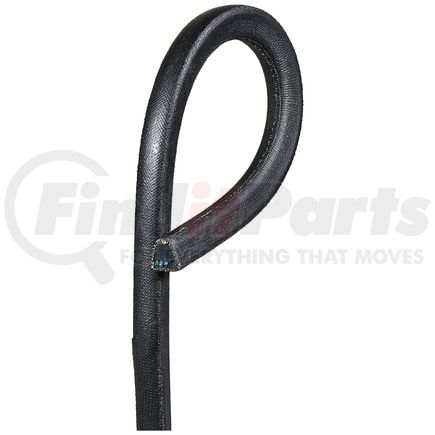

Super HC Narrow Section Wrapped V-Belt
Application Summary
Atlas, BW100, , Belt
Features & Benefits
- Up to 300 percent capacity increase over classical belts
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Belt Edge is machined for even pulley groove contact resulting in smoother running, less slip and wear
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in 3V, 5V, and 8V cross-sections as well as Super HC PowerBand joined V-belts
GATES 3V500 Specifications
Product Attributes
| Type | Narrow Section Wrapped V-Belt |
| Cross Section Designation | 3V |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 50 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | Neoprene |
| Cord Material | Polyester |
| Top Width | 10 mm |
| Outside Circumference | 1270 mm |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Stock Status | S |
| UPC | 00072053267556 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3V500 Cross References
| Brand | Part Number |
|---|---|
| 93326500 | |
| <Unknown> | 614470, 625010, 625060, 625070 |
| ACDelco | 3V500 |
| Atlas Tool | 10715 |
| Broyhill | 5220, 5224 |
| CARQUEST | 3V500 |
| CONTINENTAL AG | 3V500 |
| Carrier Transicold | 500108603 |
| Case Tractor | C10511, S202900 |
| Dayco | 3V500 |
| GOODYEAR BELTS | 3V500 |
| Goodyear | 3V500, 79500 |
| Heckendorn | 3627 |
| Massey Ferguson | 933139 |
| N/A | 41006238, 3V500, R3V500 |
| NAPA | 3V500 |
| NAPA Belts/Hose | 3V500 |
| PIX | A-3V500 |
| Parmi Tool | 1239 |
| Shaw | S3541 |
| Unit Rig | 21073, 21571 |
