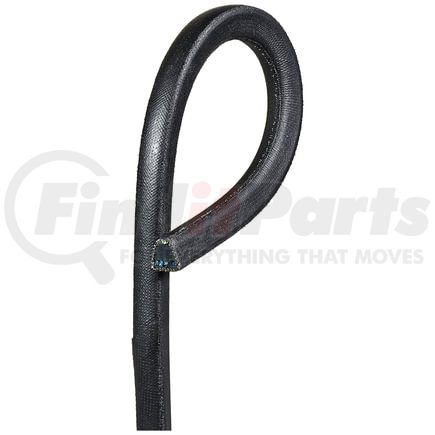

(888) 312-8812 Login SignupGATES 3V315 Super HC Narrow Section Wrapped V-Belt
Tap to view 2 more
$2749
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
GATES 3V315 Part Description
Manufacturer
Product Description
Super HC Narrow Section Wrapped V-Belt
Application Summary
Bolens, 930, , Low Speed Drive
Features & Benefits
- Up to 300 percent capacity increase over classical belts
- Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
- Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution, resistance to fatigue and shock loads and the absorption of bending stress without cord deterioration
- Belt Edge is machined for even pulley groove contact resulting in smoother running, less slip and wear
- Meets RMA oil and heat resistant standards and static conductivity requirements
- Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
- NOTE: Available in 3V, 5V, and 8V cross-sections as well as Super HC PowerBand joined V-belts
GATES 3V315 Specifications
Product Attributes
| Type | Narrow Section Wrapped V-Belt |
| Cross Section Designation | 3V |
| Strand Quantity | 1 |
| Top Width | .38 in |
| Outside Circumference | 31.5 in |
| Construction | Wrapped |
| Notched | No |
| Belt Material | Neoprene |
| Cord Material | Polyester |
| Top Width | 10 mm |
| Outside Circumference | 800 mm |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Stock Status | S |
| UPC | 00072053267419 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 3V315 Cross References
| Brand | Part Number |
|---|---|
| 93326315 | |
| <Unknown> | 90300184, K1, R349432 |
| ACDelco | 3V315 |
| Alliance Truck Parts | GT3V315 |
| Ariens | 34X78, 367230R1 |
| Bolens | 1719444 |
| CARQUEST | 3V315 |
| CONTINENTAL AG | 3V315 |
| Dayco | 3V315, 6X315 |
| Food Machine | 1715612 |
| GOODYEAR BELTS | 3V315 |
| Goodyear | 3V315, 79315 |
| Hahn | 308492 |
| Harley Davidson | 3639363 |
| International Harvester (IHC) | 376230R1 |
| Jacobsen | 349432 |
| Kohler | 231265 |
| MTD Products | 7540133, 754133 |
| Myers | 15382A2 |
| N/A | 41006229, 3V315 |
| NAPA | 3V315 |
| NAPA Belts/Hose | 3V315, 5294 |
| PIX | A-3V315 |
| Power Lawnmower Part | 109-800 |
| Prevost | 506149 |
| Roper | 3754H1 |
| Thermo-King | 2925B06H78, 780685 |
| West Point | 9649 |
| Westerbeke | 13585 |
| Wheel Horse | 1583 |
| White | 320002003 |
| X Series | 6X315 |
| Yazoo | 205003, 205331 |
