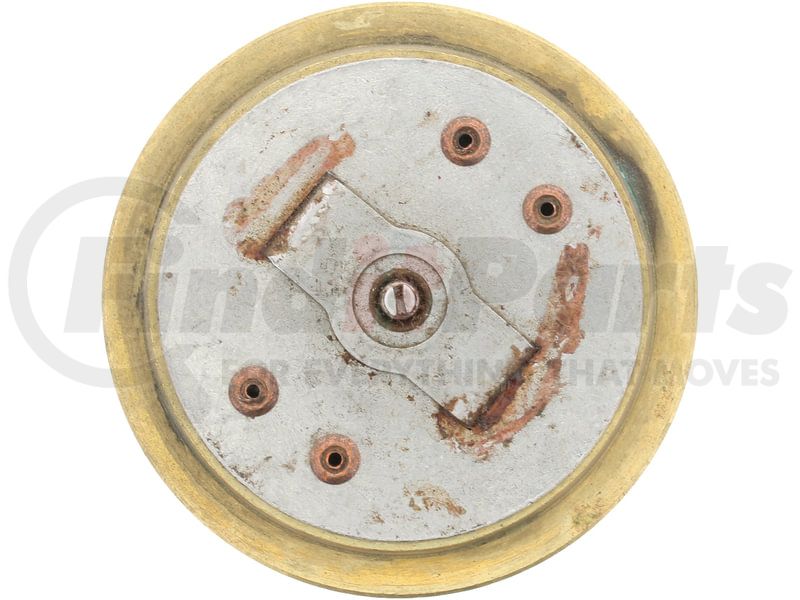

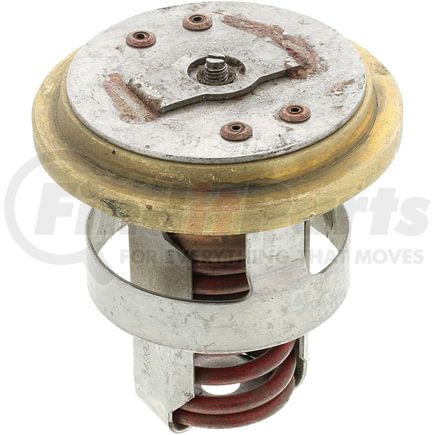

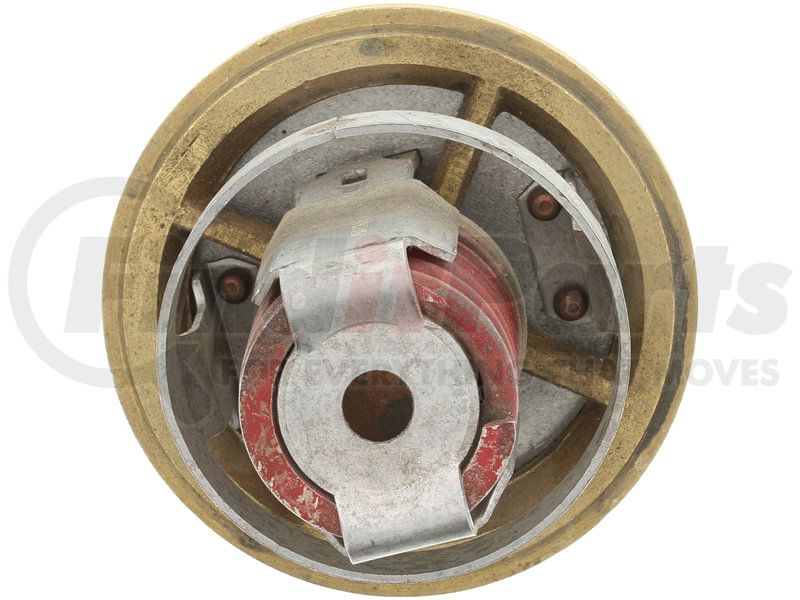

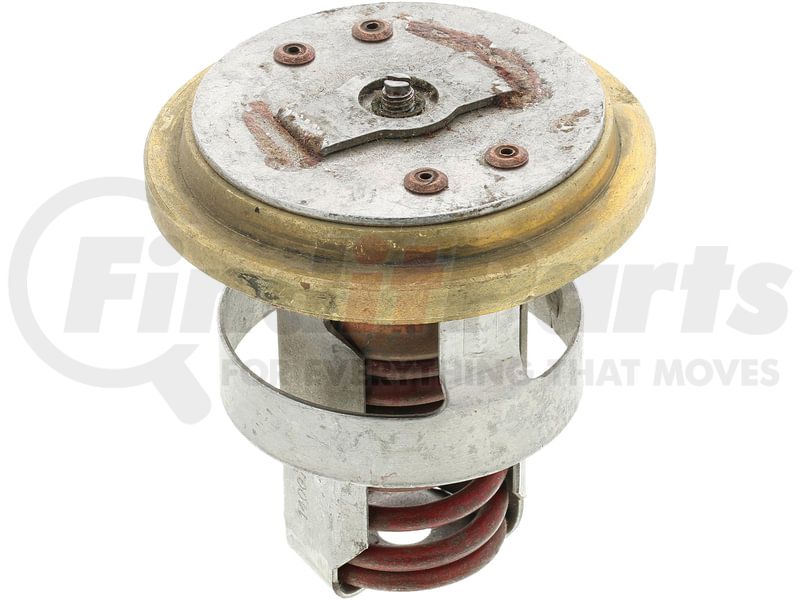

GATES 33448 Green Stripe Heavy-Duty Engine Coolant Thermostat

★★★★★ (0)
Gates 33448 Engine Coolant Thermostat Green Stripe Heavy-Duty Engine Coolant Thermostat
GATES
Tap to view 2 more

$105.49

Limited availability at this price!

In Stock

Get as soon as Tuesday, Oct 27
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

GATES 33448 Part Description

Manufacturer

GATES

Product Description

Green Stripe Heavy-Duty Engine Coolant Thermostat

Application Summary

1988-1978 GMC, Brigadier, Detroit Diesel 6-71 Diesel, Thermostat

Features & Benefits

  • Heavy-gauge brass and stainless steel construction for corrosion resistance
  • Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
  • Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
  • Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts

GATES 33448 Specifications

Product Attributes

Type Heavy-Duty Thermostat
Start to Open Temperature 180 FA
Design Side By-Pass
Material Stainless Steel, Steel, Brass, Copper
Height 3.15 IN
Sealing Flange Outside Diameter 2.86 IN
Flange Thickness .2 in
Valve Outside Diameter 2.29 IN
Flange Height .3 IN
Height Between Flanges 2.65 IN
Jiggle Pin Weep Hole No
Jiggle Pin Check Valve Quantity 0
Gasket Quantity 0
Seal Quantity 0
Installation Tool Included No
Start to Open Temperature 82 CE

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8481809015
Stock Status N
UPC 00072053024760
VMRS Code 042006000
UNSPSC 41112209

GATES 33448 Cross References

BrandPart Number
14408, 74125898
CARQUEST or Stant14008
CST132-2
Carquest31878
Dayco83636
Delco Harrison132-2, 132-62
Detroit Diesel5104096, 5133358, 5149423
Edelmann2053-180
FleetriteZAM-2458
General Motors12301820, 5104096, 5133358, 5149423
Ideal Tridon31878
Motorad821080
MotorcraftRT-315
Murray Temperature Control277378
NAPA302-180
NAPA Belts/Hose33448
Robertshaw346-180
ScovilleVD10392-W
Standard Thomson302-180
Stant14008, 31878
Tridon821080
WalthamW302-180
White027074990

GATES 33448 Fits Vehicles

  • Autocar C / DC (1983)
  • International 2275 (1979-1986)
  • International 2276 S (1983-1985)
  • International 2574 (1979-1987)
  • International 2575 (1979-1986)
  • International 2674 (1979-1986)
  • International CO9670 (1982-1984)
  • International COF9670 (1982-1984)
  • International F2275 (1979-1986)
  • International F2276 S (1983-1985)
  • International F2574 (1979-1986)
  • International F2575 (1979-1984)
  • International F2674 (1979-1986)
  • International F5070 (1981-1985)
  • International F5070-SF (1984)
  • Kenworth C500 (1982-1986)
  • Kenworth L700 (1984-1986)
  • Peterbilt 200 (1972-1978)
  • Peterbilt 282 (1965-1977)
  • Peterbilt 310 (1981-1986)
  • Peterbilt 320 (1991-1992)
  • Peterbilt 353 (1981)
  • Peterbilt 362 (1982-1983)
  • Western Star 4800 (1981-1988)
  • Western Star 4900 (1981, 1983-1986)
  • Chevrolet J90 (1973-1978)
  • Ford CL9000 (1981)
  • Ford L9000 (1981-1985)
  • Ford LN9000 (1981-1984)
  • Ford LNT9000 (1981-1984)
  • Ford LT9000 (1981-1984)
  • Ford LTS9000 (1981-1985)
  • GMC Astro (1981-1982)
  • GMC Brigadier (1981-1988)
  • GMC General (1981-1988)
  • White WCS (1985-1987)
  • White WIM (1986-1987)
  • White WX (1981-1988)
  • White/GMC J9C0 (1988-1989)
  • White/GMC WX (1988)
