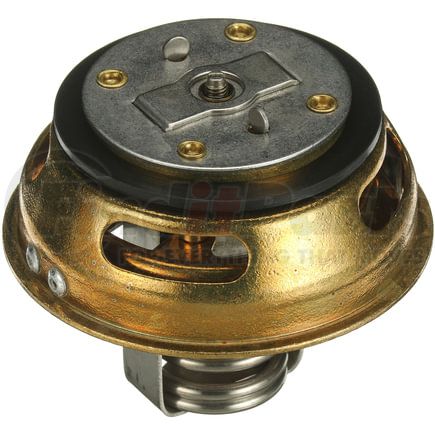

(888) 312-8812 Login SignupGATES 33347 Green Stripe Heavy-Duty Engine Coolant Thermostat
Tap to view 2 more
$10349
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23
GATES 33347 Part Description
Manufacturer
Product Description
Green Stripe Heavy-Duty Engine Coolant Thermostat
Application Summary
Clark-Michigan-VME, 175A, Waukesha 135DK Diesel, Thermostat
Features & Benefits
- Heavy-gauge brass and stainless steel construction for corrosion resistance
- Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
- Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
- Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts
GATES 33347 Specifications
Product Attributes
| Type | Heavy-Duty Thermostat |
| Start to Open Temperature | 170 FA |
| Design | Side By-Pass |
| Material | Stainless Steel, Copper, Brass |
| Height | 3 IN |
| Sealing Flange Outside Diameter | 3.53 IN |
| Flange Thickness | .06 in |
| Flange Height | 1.5 IN |
| Height Between Flanges | 1.5 IN |
| Jiggle Pin Weep Hole | Yes |
| Jiggle Pin Check Valve Quantity | 2 |
| Gasket Quantity | 0 |
| Seal Quantity | 1 |
| Seal Type | O-Ring |
| Installation Tool Included | No |
| Start to Open Temperature | 77 CE |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Country of Origin (Primary) | CN |
| Stock Status | S |
| UPC | 00072053024586 |
| VMRS Code | 042006000 |
| UNSPSC | 41112209 |
GATES 33347 Cross References
| Brand | Part Number |
|---|---|
| 747730995519, 74125747 | |
| Carter | 26-2517 |
| Delco Harrison | 132-17 |
| Dole | DV-267 |
| Edelmann | 2058-170 |
| Fleetrite | ZAM-2507 |
| General Motors | 12301455 |
| Ideal Tridon | 31747 |
| Mack | 657GC225P2, 657GC226P2, 657GC227P2, 657GC228P2 |
| Motorad | 830070 |
| Motorcraft | RT-329 |
| Murphy | MD12209 |
| NAPA | 353-170 |
| NAPA Belts/Hose | 33347 |
| Robertshaw | 45-170, 47-170 |
| Scoville | VD300-2, VD300-4, VD300-7 |
| Standard Thomson | 353-170 |
| Stant | S-47, S-47-170 |
| Waltham | W353-170 |
| Waukesha | 156350, 162492A, 162492C |
