GATES part description

Product Description

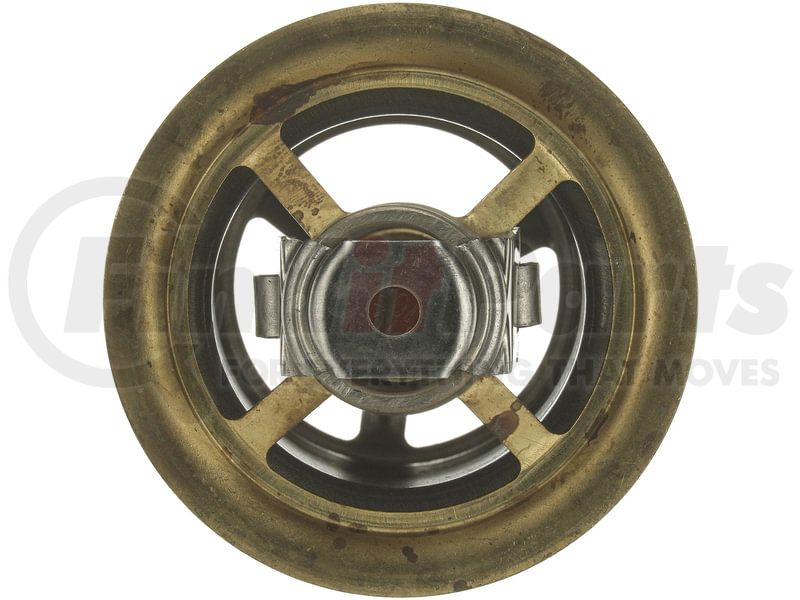

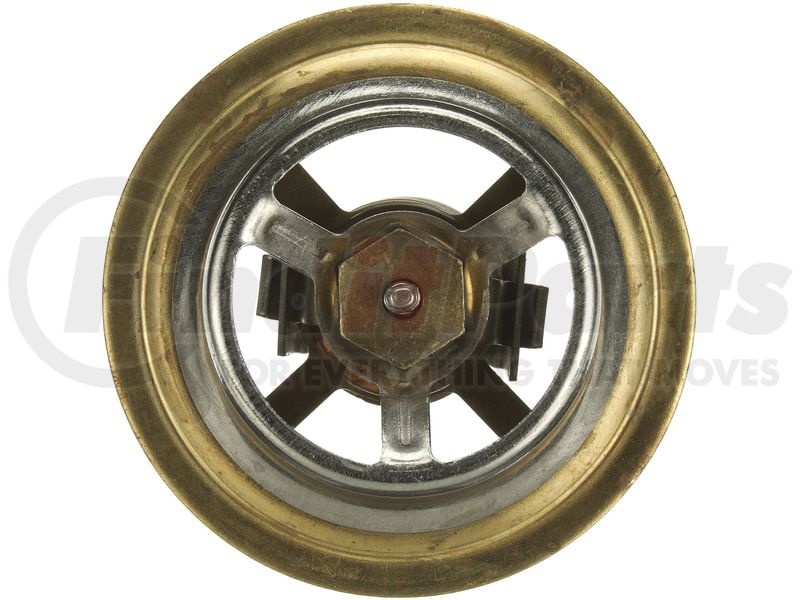

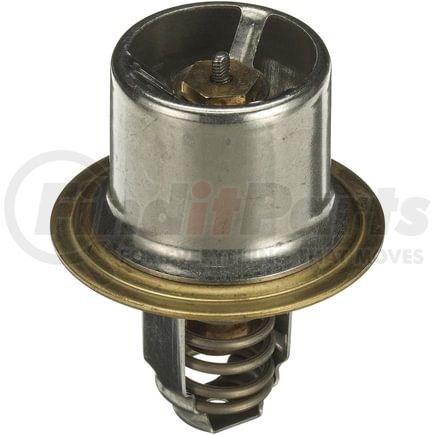

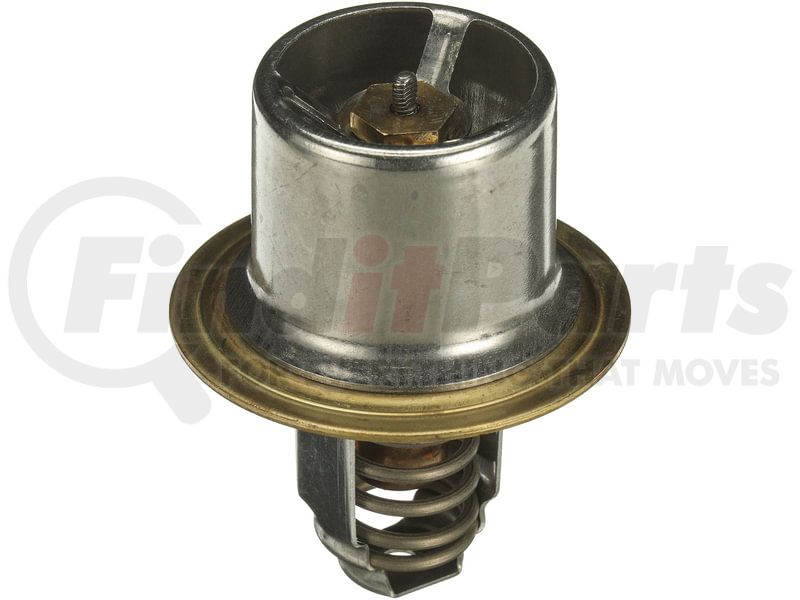

Green Stripe Heavy-Duty Engine Coolant Thermostat

Application Summary

Case, 1150, Case A401BD Diesel, Thermostat

Features & Benefits

  • Heavy-gauge brass and stainless steel construction for corrosion resistance
  • Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
  • Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
  • Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts

Product Attributes

Type Heavy-Duty Thermostat
Start to Open Temperature 170 FA
Design Top By-Pass
Material Stainless Steel, Copper, Brass
Height 3.16 IN
Sealing Flange Outside Diameter 2.46 IN
Flange Thickness .06 in
9811 1.61 IN
9907 1.53 IN
Height Between Flanges 1.685 IN
Jiggle Pin Weep Hole No
9852 0
Gasket Quantity 0
9841 0
Installation Tool Included No

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8481809015
UPC 00072053024289
VMRS Code 042006000
UNSPSC 41112209

Part Interchanges

GATES 33167 Cross Reference

We have 2 alternatives for the 33167 by GATES:

Fits Vehicles

  • International Scout (1961-1969)
