(888) 312-8812 Login SignupGATES 32862 Green Stripe Heavy-Duty Spring-Loaded T-Bolt Hose Clamp
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 32862 Part Description
Manufacturer
Product Description

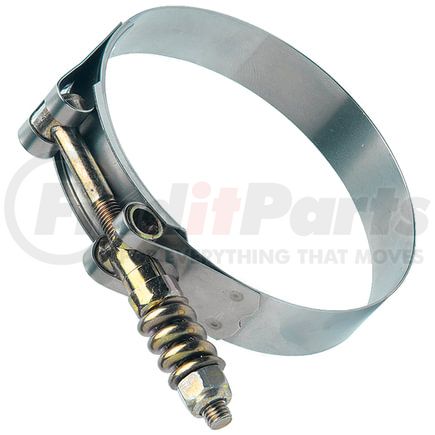

Green Stripe Heavy-Duty Spring-Loaded T-Bolt Hose Clamp
Features & Benefits
- Designed for use in high-vibration and large diameter applications
- Commonly used with heavy truck and off-road equipment
- Also used with industrial machinery
GATES 32862 Specifications
Product Attributes
| Adjustment Type | T-Bolt (Spring-Loaded) |
| Hose Clamp Size | 86 |
| Minimum Clamping Length | 3.5625 IN |
| Maximum Clamping Length | 3.875 IN |
| Band Width | .75 IN |
| Bolt Type | .25 in. - 28 Male Pipe Thread |
| Nut Type | .4375 in. (11.1 mm) Hex-Head |
| Spring Material | Plated Steel |
| Recommended Torque | 75 PPI |
| Minimum Clamping Length | 90.5 MM |
| Maximum Clamping Length | 98.4 MM |
| Band Width | 19.1 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053896619 |
| VMRS Code | 053008020 |
| UNSPSC | 31162900 |
GATES 32862 Part Interchanges
| Brand | Part Number |
|---|---|
| Carquest | 32862 |
| Ideal Tridon | 300300356, 300300356051 |
| NAPA Belts/Hose | 32862 |
GATES 32862 Cross References
We have 1 alternatives for the 32862 by GATES:
