GATES 32236 Part Description
Manufacturer
Product Description

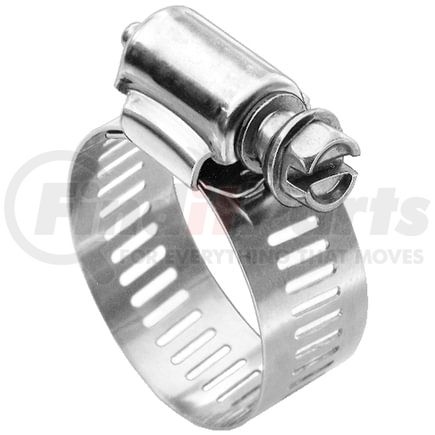

Green Stripe Heavy-Duty Stainless Steel Hose Clamp
Features & Benefits
- Housing and 9/16 in. wide band are constructed of heavy-gauge stainless steel
- Tightening screw is a 400 series stainless steel screw
- Rounded band edges give your hoses extra protection
- Hex-shaped screw has a deep slot that tightens with a screwdriver, nut driver or socket wrench
- NOTE: Tighten to 35 in. lb.
GATES 32236 Specifications
Product Attributes
| Adjustment Type | Stainless Steel (Heavy-Duty) |
| Hose Clamp Size | 36 |
| Hose Minimum Inside Diameter | 1.75 IN |
| Hose Maximum Inside Diameter | 2.25 IN |
| Minimum Clamping Length | .875 IN |
| Maximum Clamping Length | 1.875 IN |
| Band Width | .5625 IN |
| Screw Type | Deep Slot Hex-Head |
| Recommended Torque | 30-40 PPI |
| Maximum Torque | 60 IA |
| Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Band Width | 14 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00072053021912 |
| VMRS Code | 053008020 |
| UNSPSC | 31162900 |
GATES 32236 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 144-0056 |
| Norton | 033-36 |
| ACDelco | 32236C |
| Dayco | 92036 |
| Amgauge | CC36 |
| Sterling | H136MS |
| Goodyear | 51336 |
| Ideal Tridon | 630040036, 630040036051, 6836590 |
| OEM Industries | 4-2336 |
| Ideal Hy-Gear | 6836 |
| NAPA | 705-1109 |
| Sure-Tite | 36HS, 36KS3, C36PS |
GATES 32236 Cross References
We have 1 alternatives for the 32236 by GATES:
