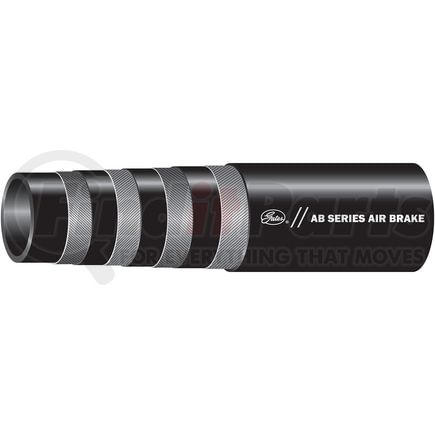

Gates 27240 - AB Series Air Brake Hose
$8399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
AB Series Air Brake Hose
Features & Benefits
- Superior EPDM rubber resists damaging e?ects of ozone and heat, plus harmful grease and oil common to air brake systems
- Flexible and kink-resistant
- Designed to accept all styles of air brake couplings, including conventional brass and plastic couplings
- Four-spiral polyester construction meets SAE J1402 specifications; complies with DOT FMVSS 106 requirements
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
- Note: Federal law requires registration with the Department of Transportation for anyone producing air brake hose assemblies with swaged or crimped fittings
- Note: See Engineering and Technical Data Section of the Gates Hydraulic Catalog for compliance
Product Attributes
| Product Type | AB Series Air Brake Hose |
| Industrial Description | 3/8 X 50FT Rubber Air Brake |
| Type | Fleet Application & Maintenance Hose |
| Hose Pressure Description | Low Pressure |
| 2053 | 225 PS |
| Burst Pressure | 1000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 50 FT |
| 9941 | 6 |
| Inside Diameter | .375 IN |
| Outside Diameter | .75 IN |
| Tube Description | EPDM Rubber |
| Hose Material | EPDM Rubber |
| Reinforcement Material | Four-Spiral Fiber |
| Cover Material | EPDM Rubber |
| Cover Color | Black |
| 9856 | Gates G33 Air Brake Couplings |
| 9453 | J1402 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00072053065541 |
| VMRS Code | 013007007 |
| UNSPSC | 40142000 |
Part Interchanges
