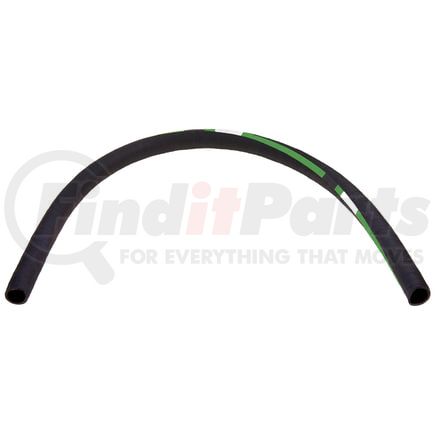

Gates 24928 - Green Stripe Wire Inserted Straight Coolant Hose
$16549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Green Stripe Wire Inserted Straight Coolant Hose
Application Summary
Fiat-Allis, FR12B, Fiat 6-Cyl. 335 Diesel, Upper
Features & Benefits
- Heavy-duty fabric reinforcement with helical carbon steel wire
- Engineered with compounds which resist electrochemical degradation
- Exceeds SAE 20R2 Type EC (Class D2 tube and cover) except in vacuum applications
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Long spans must be supported every 3 feet
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Centerline Length | 5 FT |
| End 1 Inside Diameter | 1.75 in |
| End 2 Inside Diameter | 1.75 in |
| Working Pressure | 75 PS |
| Vacuum Rating | 20 INHG |
| Bending Radius | 4 in |
| Construction | 1-Ply |
| Material | EPDM |
| Molded | No |
| Centerline Length | 1.52 LM |
| Centerline Length | 60 IN |
| Centerline Length | 1524 MM |
| End 1 Inside Diameter | 44 MM |
| End 2 Inside Diameter | 44 MM |
| Bending Radius | 102 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00072053177473 |
| VMRS Code | 042004050 |
| UNSPSC | 40142000 |
Part Interchanges
