(888) 312-8812 Login SignupGATES 22562 Premium Modular Coolant Hose
$6349
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
GATES 22562 Part Description
Manufacturer
Product Description

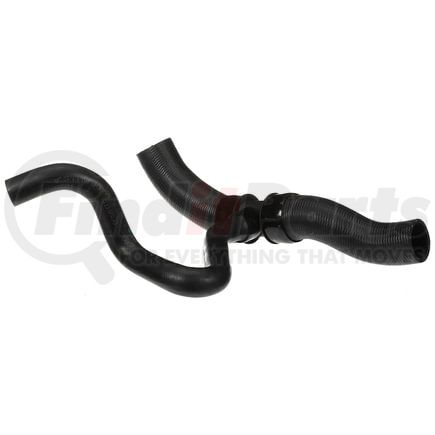

Premium Modular Coolant Hose
Application Summary
2002 Ford, Thunderbird, V-8 3.9 L, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22562 Specifications
Product Attributes
| Centerline Length | 15.49 IN |
| Modular | Yes |
| Modular Components Included | Branch |
| Branch Quantity | 1 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.45 in |
| End 2 Inside Diameter | 1.45 in |
| End 3 Inside Diameter | .73 in |
| Contains Spring | No |
| Material | EPDM, Plastic |
| Molded | Yes |
| Centerline Length | 19 MM |
| End 1 Inside Diameter | 37 MM |
| End 2 Inside Diameter | 37 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053545883 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22562 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM-4402 |
| ACDelco | 22386M |
| Dayco | 72178, E72178 |
| Carquest | 22562 |
| Ford | XW4Z 18472 FA, XW4Z 8260 BA |
| Goodyear | 62853 |
| NAPA Belts/Hose | 9195 |
| Duralast | E72178 |
GATES 22562 Fits Vehicles
- Lincoln LS (2000-2002)
- Ford Thunderbird (2002)
- Jaguar S-Type (2000-2002)
GATES 22562 Cross References
We have 1 alternatives for the 22562 by GATES:
