(888) 312-8812 Login SignupGATES 22286 Premium Molded Coolant Hose
$2499
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13
GATES 22286 Part Description
Manufacturer
Product Description

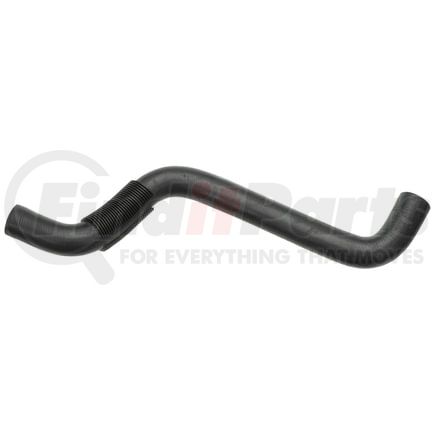

Premium Molded Coolant Hose
Application Summary
2003-1996 Ford, Windstar, V-6 3.8 L, Upper
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- Pre-shaped to fit and to ensure perfectly sealed conditions
- EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 22286 Specifications
Product Attributes
| Centerline Length | 26.8 IN |
| Modular | No |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1.47 in |
| End 2 Inside Diameter | 1.47 in |
| Contains Spring | No |
| Material | EPDM, Plastic |
| Molded | Yes |
| Centerline Length | 681 MM |
| End 1 Inside Diameter | 37 MM |
| End 2 Inside Diameter | 37 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00072053278705 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 22286 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM-3068, KM-4389 |
| ACDelco | 26327X |
| Dayco | 71871, E71871 |
| Carquest | 22286 |
| Ford | F68A 8B274 CB, F68A 8B274 CC, F68A 8B274 CD, F68Z 8260 CA, F78A 8B274 KC, XF22 8B274 BA, XF22 8B274 BB, XF2Z 8260 BA |
| Goodyear | 62185 |
| NAPA Belts/Hose | 8919 |
| Duralast | E71871 |
GATES 22286 Fits Vehicles
- Ford Windstar (1996-2003)
GATES 22286 Cross References
We have 1 alternatives for the 22286 by GATES:
