GABRIEL part description

Product Description

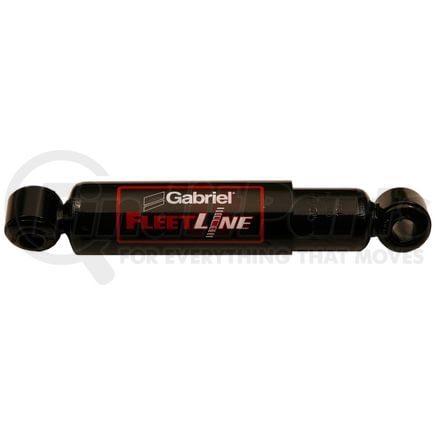

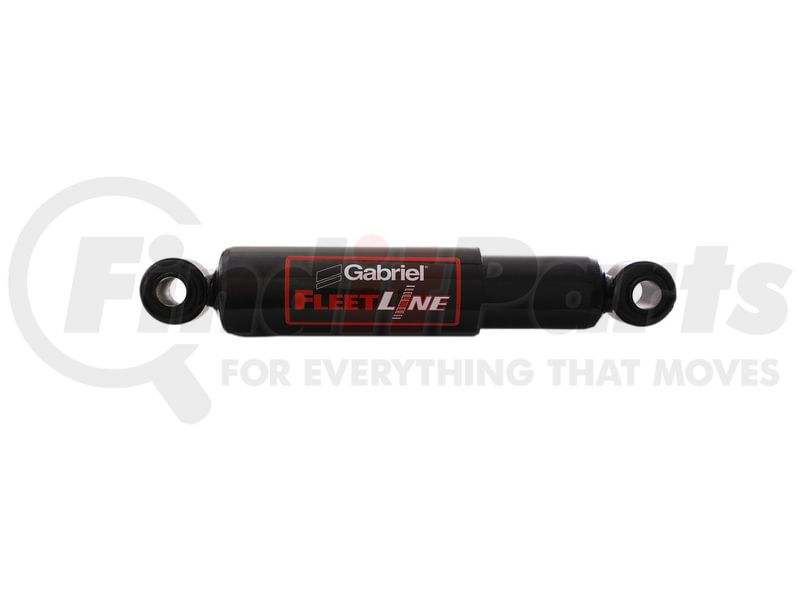

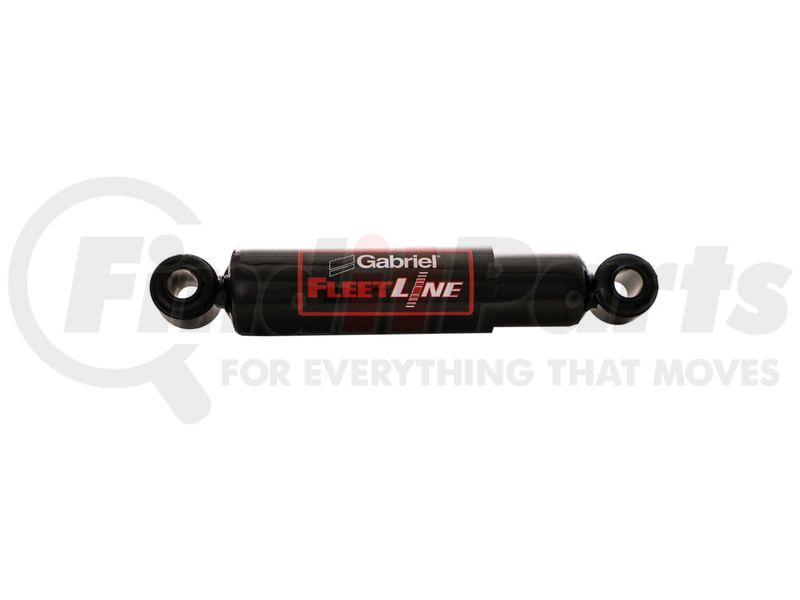

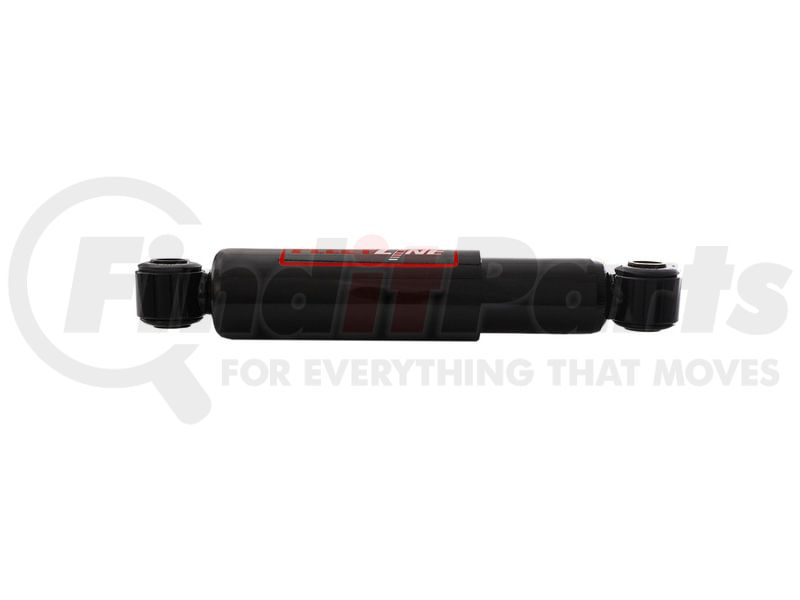

FleetLine Heavy Duty Shock Absorber

Features & Benefits

  • 1 3/8” bore designed for classes 3-6 vehicles and heavy truck suspensions
  • Solid steel eye rings & 360° arc-welded end mounts deliver tough tensile strength that reduces end mount failures
  • Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
  • Anti-corrosion end mounts to inhibit rust & corrosion
  • Durable, self-compensating piston seal design for consistent damping throughout the shock life
  • Formulated shock oil for exceptional anti-fade performance

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (83000 series) - Designed as a direct replacement for the original equipment shock, FleetLine™ shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Product Attributes

Compression 218
External Diameter Illustration A
Lower Mount Code ES36
Rebound 940
Recoil Cutoff YES
Strut Bearing Included Yes
Weight (lbs) 4.9
Bore 1-3/8"
Collapsed Length (in) 11.53
Installation Hardware Included No
Dust Tube YES
Upper Mount Code ES36
Core Color Y
Extended Length (in) 16.89
Stroke (in) 5.36
Accessory Kit # n/a
Compression (lb) 218
Dust Tube Material Steel
Package Contents 1 Shock
HD Mounting Code Guide.pdf https://gabriel.com/sites/default/files/2024_HD_Mounting_Code_Guide.pdf
Rebound (lb) 940

Additional Information

Harmonized Tariff Code (Schedule B) 8708801600
Country of Origin (Primary) MX
MSDS Sheet Number ARP002 / RC001
UPC 00043645926076
VMRS Code 016003016
UNSPSC 25172011

Part Interchanges

Fits Vehicles

  • Freightliner FLB (1994-1999, 2002)
  • Freightliner FLA086 (1989-1999)
