(888) 312-8812 Login SignupMONROE 5645 OESpectrum Suspension Shock Absorber
Tap to view 5 more
SHIPS TODAY
MSRP: $150.98
$7199
Save $78.99
Limited availability at this price!
In Stock
Get it by Monday, Feb 23
MONROE 5645 Part Description
Manufacturer
Product Description

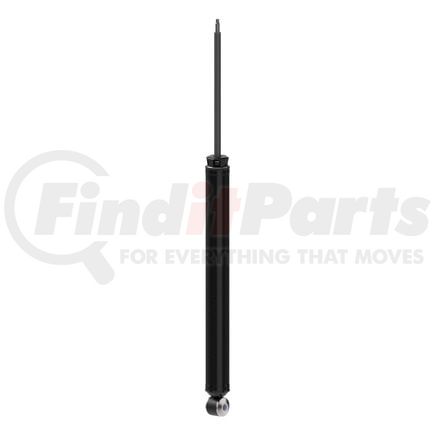

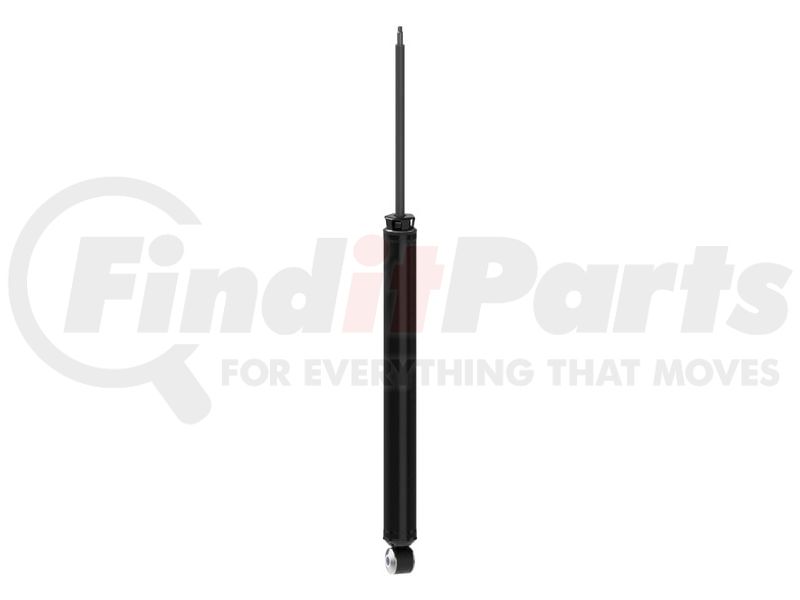

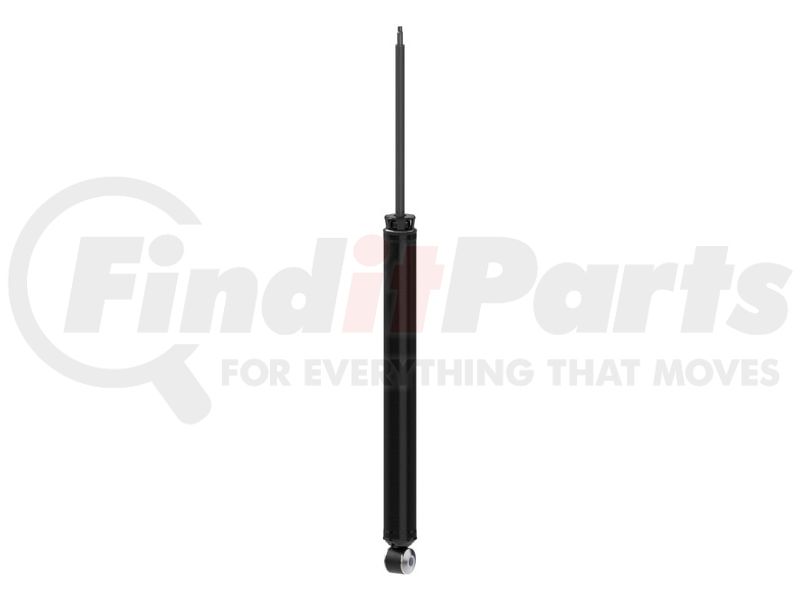

OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 5645 Specifications
Product Attributes
| Lower Mount Code | LS24 |
| Upper Mount Code | S7 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.75 IN |
| Compressed Length | 18.665 IN |
| Extended Length | 27.913 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 9.248 in |
| Upper Mount Type | Stem Mount - 1.1/8" Stem Length X M8 Thread Pitch |
| Compressed Length | 474.1 MM |
| Extended Length | 709 MM |
| Travel Length | 234.9 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 44.4 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS24 |
| Upper Mount Code | S7 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598088925 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5645 Cross References
| Brand | Part Number |
|---|---|
| 5645ST, GB5Z17682MAPTM | |
| Autopart International | 2701502815 |
| Duralast | TS3239602B |
| FCS | 346041 |
| FCS AUTO PARTS | 346041 |
| Ford | BV6Z18124C, BV6Z18124D, BV6Z18124E, BV6Z18124F, BV6Z18124G, BV6Z18124H, BV6Z18124J, BV6Z18124K, BV6Z18124L, BV6Z18124M, BV6Z18125A, BV6Z18125B, BV6Z18125C, BV6Z18125D, BV6Z18125E, BV6Z18125F, BV6Z18125G, CV6Z18124A, CV6Z18124B, CV6Z18124C, CV6Z18124D, CV6Z18124E, CV6Z18124F, CV6Z18124N, CV6Z18124P, CV6Z18124Y, CV6Z18124Z, CV6Z18125G, CV6Z18125H, CV6Z18125J, CV6Z18125K, CV6Z18125N |
| GABRIEL | G511002, G511134, G511135 |
| KYB | 349194, 554402, 3440047 |
| KYB AMERICA LLC. | 349194 |
| MasterPro Shocks and Struts | FD181 |
| Monroe Shocks & Struts | 210073 |
| NAPA Shocks | 5645, NS5645 |
| OEM | BV6Z18125E, BV6Z18125D, BV6Z18125A, BV6Z18125B, BV6Z18125F, BV6Z18125C, BV6Z18125G, CV6Z18125N |
| PM Auto | PM6001423 |
| PRT | 373358 |
| SENSEN | 3213-0586 |
| Sachs | 315515 |
| Sensen | 32130586 |
| TRQ | SBA60801 |
| TRW | JGT5410S |
| Top Quality | 785645 |
| UNITY AUTOMOTIVE | 2-252150-001, 4-11085-252150-001 |
| Ultra Spring Seat | G511002 |
| Unity Automotive | 252150 |
MONROE 5645 Fits Vehicles
- Ford Focus (2012-2018)
