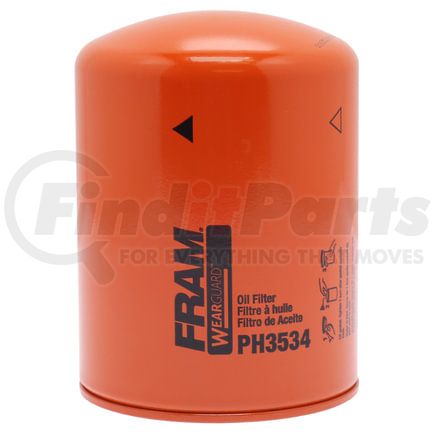

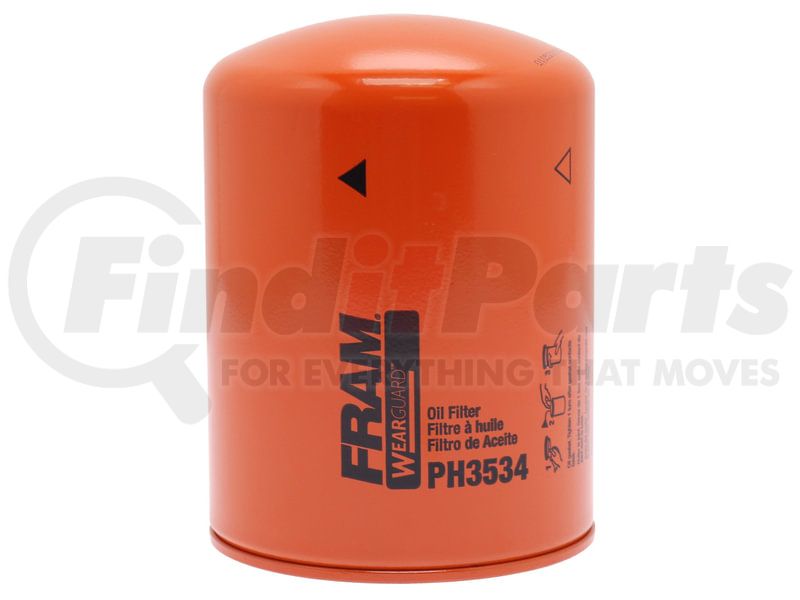

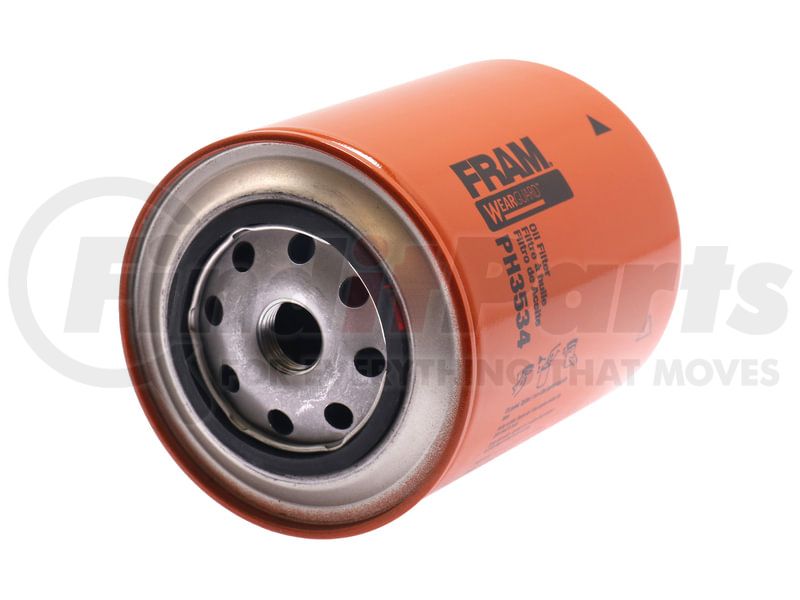

(888) 312-8812 Login SignupFRAM PH3534 Full-Flow Lube Spin-on
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PH3534 Part Description
FRAM PH3534 Specifications
Product Attributes
| Height | 5.817 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve Setting | 20 PS |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.203 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 2.460 IN |
| Gasket Outside Diameter | 2.531 IN |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 3/4-16 IN |
| New Or Remanufactured | New |
| Outside Diameter | 4.244 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
| Inner Thread Diameter | 3/4-16 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100422118 |
| UNSPSC | 15121501 |
FRAM PH3534 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF1032, PF1803, PF1806 |
| ACDelco | PF1032, PF1803, PF1806 |
| ALCO LOCOMOTIVE | SP855 |
| ALLIS-CHALMERS | 26540215, 4027979, 40279796, 451341, 4513411 |
| Allis Chalmers | 26540215, 4027979, 40279796, 451341, 4513411, 4513411-1, 45134111, 74027979 |
| BALDWIN | BT267 |
| Baldwin | B481, BT238 |
| Big A | 92411, 92594 |
| Carquest | 85411, 85601, 85714 |
| Case | 47128196 |
| Crosland | 640, 655 |
| Donaldson | P553411 |
| EMD | 9311037 |
| Fleetguard | LF3449, LF3505, LF682 |
| Fleetrite | LFR-8682 |
| Ford | D5NN-6714-A, D8NN-6714-LA, D9NN-6714-CA |
| Frigiking | 31-00218 |
| Gardner Denver | 2012840, 26A43 |
| General Motors | 25011619 |
| Hastings | BT7316, LF127, W940 |
| Hercules | 40-0000-401 |
| International Harvester IHC | 925229C91 |
| Knecht | FO-371/5 |
| Kralinator | L40A |
| Kubota | 16543-99170, 70000-15451 |
| LUBER-FINER | LFP3411 |
| Mann-Filter | W940/15N |
| Mopar | L-48 |
| Motorcraft | FL-237 |
| NAPA | 1411, 1714 |
| Perkins | 26540214, 26540215, 2654350 |
| Phillips 66 | P22 |
| Purflux | LS186 |
| Purolator | L20022, L30022, L34733, L37198 |
| WIX FILTERS | WIX FILTERS, 51601 |
| White | 40-0000401 |
| Wix | 51411, 51601 |
| Worthington | ELM-49, ELM-60, FLR-412 |
