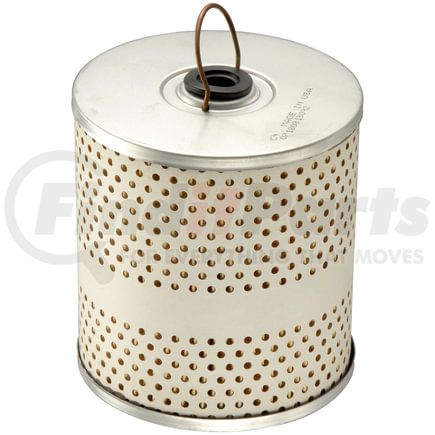

(888) 312-8812 Login SignupFRAM C4 Cartridge By-Pass Oil Filter
Tap to view 1 more
$28.42
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM C4 Part Description
Manufacturer
Product Description
FRAM, C4, HD Oil Filter
Cartridge By-Pass Oil Filter
Fram Engine Oil Filter
The Fram Engine Oil Filter manages oil circulation by screening contaminants before lubricant returns to internal engine components. Oil enters through the inlet openings and passes across the filter element where particles are captured and retained. Maintaining clean oil flow helps reduce abrasive wear within the engine. Identified as C4 and categorized as an HD oil filter, this model is intended for heavy-duty applications requiring that designation. Once threaded into place, it begins filtering immediately as oil pressure builds. The Fram C4 supports lubrication control in compatible systems.
FRAM C4 Specifications
Product Attributes
| Height | 4.875 IN |
| Filter Type | Cartridge |
| Housing Color | NA |
| Bottom Inside Diameter | 0.531 IN |
| Top Inside Diameter | 0.531 IN |
| Grade Type | Regular |
| New Or Remanufactured | New |
| Outside Diameter | 4.203 IN |
| Reusable | No |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100380029 |
| UNSPSC | 15121501 |
FRAM C4 Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | P209 |
| ACDelco | P209, PF2134 |
| ALLIS-CHALMERS | 1122177, 11221770, 255191, 30385025, 4502495, 45024957, B2494, B2495 |
| Allis Chalmers | 1122177, 11221770, 255191, 30385025, 4502495, 45024957, B2494, B2495, DE20202 |
| Atlas-Copco | 9710-0275 |
| B&W Lathrop Marine | L-4167A, P-1723, P-2627 |
| BALDWIN | P41 |
| Baker | 9033AG1 |
| Beck/Arnley | 041-8116 |
| Big A | 92006 |
| Bosch | 1457429175, 1457429201, 1457431484, FJSJ24S1Z |
| Case | G45008, G54008 |
| Caterpillar | 26108 |
| Champ | P4 |
| Chrysler | 1321262, 529830, 8990050, J8990050 |
| Crosland | 475, 550 |
| Deutsch | P4 |
| Deutz | 1168465 |
| Diamond Reo | 11415-W, 120877, 1318-A6, 1668-A6, P-2674 |
| Divco Trucks | 4911, 4916, 5600 |
| FLEETGUARD | LF3358 |
| FWD | 10375026, 10375039, 48A6944 |
| Fairbanks-morse | C7NN-6N605-A |
| Federal Truck | 1B1283 |
| Fleetguard | LF3775, LF510 |
| Fleetrite | LFR-8510 |
| Ford | EAA-6715-A |
| Gardner Denver | 42863-BS |
| General Motors | 1097012, 1427938, 5572504, 5573664, 5576138 |
| Gonher | G4 |
| Grand Prix | P4, P70 |
| Group 7 | V51 |
| Hastings | F101, LF101 |
| Hercules | 155241-CS, 155246-CS, 15525-B, 155253-BS, 47254-CS, 47362-B, 47362-BS |
| Hobart | 509023 |
| Hudson | 8990050 |
| Hyster | 5021, 57041 |
| IAPCO | A-0240-004 |
| ITM | 11-12701, 11-12705, 11-12706 |
| International Harvester IHC | 124225H1, 367488R91 |
| Kenworth | 60368 |
| Knecht | EN110, ENC-305 |
| Kohler | 280206 |
| Kralinator | K55A |
| LUBER-FINER | P4 |
| Lee | L-34 |
| MPA | 4218 |
| Mack | 236GB232, 43SB15, 43SBA15 |
| Mann-Filter | P1015O, P11.45O, PF1050/1N, PF1155K, PF1155N, PF1155X |
| Marathon | P4, P70 |
| Massey Ferguson | 1900368-M91 |
| Master Parts | P-4 |
| Mercedes-Benz | 000 184 5825 |
| Mitsubishi | J8990050 |
| Mopar | L-62 |
| Motorcraft | FL-25 |
| NAPA | 1006 |
| Nelson | 86175-B, WF-4 |
| Nordberg | 3890-100 |
| Onan | 122-0024, 122-24 |
| Palmer | 3464 |
| Phillips 66 | P34 |
| Purolator | L30034 |
| Ready Power | 11978 |
| Rol-Pak | AL-4BP, F-4-S-BP |
| STP | P4 |
| Sheppard | 16028-D, 310293 |
| Simca | 105198, 50990-D, F01A-1869A, F42A-6714 |
| United Engine Life | FC-4, U35L |
| Universal | PUF1190 |
| Unocal 76 | P115 |
| Vera | 10-00439 |
| Volvo | 405434, 505434, 70-83912, 83912 |
| WGB | S-2-C |
| WIX FILTERS | WIX FILTERS, 51006 |
| Warner | P4 |
| Waukesha | 101712, 60368 |
| White | 618079, T-16598, T-5053, TO-5053 |
| Witte | 4-36-27, 47719000, 5-80-38 |
| Wix | 51006 |
FRAM C4 Fits Vehicles
- Cadillac Commercial Chassis (1949-1959)
- Cadillac DeVille (1953-1959)
- Cadillac Eldorado (1953-1959)
- Cadillac Series 60 Fleetwood (1950-1956, 1959)
- Cadillac Series 61 (1950-1951)
- Cadillac Series 62 (1950-1959)
- Cadillac Series 70 Fleetwood Eldorado (1958)
- Cadillac Series 75 Fleetwood (1949-1959)
- Chevrolet 1500 (1954)
- Chevrolet 3B (1959)
- Chevrolet 3C (1959)
- Chevrolet 3D (1959)
- Chevrolet 3E (1959)
- Chevrolet 3F (1959)
- Chevrolet 3G (1959)
- Chevrolet BK (1942-1946)
- Chevrolet Bel Air (1950-1962)
- Chevrolet Biscayne (1958-1962)
- Chevrolet Brookwood (1959-1961)
- Chevrolet C10 Panel (1960-1962)
- Chevrolet C10 Pickup (1960-1962)
- Chevrolet C20 Pickup (1960-1962)
- Chevrolet C30 Panel (1960-1962)
- Chevrolet C30 Pickup (1960-1962)
- Chevrolet Corvette (1953-1956)
- Chevrolet Del Ray (1957-1958)
- Chevrolet El Camino (1959-1960)
- Chevrolet Fleetline (1946-1952)
- Chevrolet Fleetmaster (1942, 1946-1948)
- Chevrolet Impala (1958-1962)
- Chevrolet K10 Pickup (1960-1962)
- Chevrolet K20 Pickup (1960-1963)
- Chevrolet Kingswood (1959-1961)
- Chevrolet Nomad (1955-1961)
- Chevrolet One-Fifty Series (1953-1957)
- Chevrolet P10 Series (1960-1962)
- Chevrolet P20 Series (1960-1962)
- Chevrolet P30 Series (1960-1962)
- Chevrolet Parkwood (1959-1961)
- Chevrolet Sedan Delivery (1947-1951, 1953-1958)
- Chevrolet Styleline Deluxe (1949-1952)
- Chevrolet Styleline Special (1949-1952)
- Chevrolet Stylemaster Series (1946-1948)
- Chevrolet Suburban (1960-1962)
- Chevrolet Truck (1942-1958, 1960)
- Chevrolet Two-Ten Series (1953-1957)
- Chevrolet Yeoman (1958)
- Ford 1 Ton Pickup (1943-1947)
- Ford 1/2 Ton Pickup (1943-1947)
- Ford 3/4 Ton Pickup (1943-1947)
- Ford Club (1953)
- Ford Country Sedan (1950-1953)
- Ford Country Squire (1950-1953)
- Ford Courier Sedan Delivery (1952-1953)
- Ford Crestline (1950-1953)
- Ford Custom (1949-1952)
- Ford Customline (1952-1953)
- Ford Deluxe (1946-1951)
- Ford F-1 (1948-1952)
- Ford F-100 (1953)
- Ford F-2 (1948-1952)
- Ford F-250 (1953)
- Ford F-3 (1948-1952)
- Ford F-350 (1953)
- Ford F4 (1948-1952)
- Ford Ford (1949)
- Ford Mainline (1952-1953)
- Ford Model 2 GA Special (1942)
- Ford Ranch Wagon (1950-1953)
- Ford Sedan Delivery (1946-1947)
- Ford Sunliner (1952-1953)
- Ford Super Deluxe (1946-1948)
- Ford Victoria (1951-1953)
- GMC 100 (1953-1955)
- GMC 100-22 (1953-1955)
- GMC 100-24 (1953-1954)
- GMC 150 (1953-1955)
- GMC 150-22 (1953-1955)
- GMC 150-24 (1953-1954)
- GMC 250 (1953-1955)
- GMC 250-22 (1953-1955)
- GMC 250-24 (1953-1954)
- GMC 280-22 (1953-1955)
- GMC 300 (1953-1955)
- GMC 300-24 (1953-1954)
- GMC 350-24 (1953-1954)
- GMC 350-27 (1953-1954)
- GMC 370 (1953-1955)
- GMC PB1000 Series (1961-1962)
- GMC PM150 (1955)
- GMC PM150-22 (1953-1954)
- GMC PM150-24 (1953-1954)
- GMC PM151 (1955)
- GMC PM152 (1954-1955)
- GMC PM152-22 (1953-1954)
- GMC PM153 (1955)
- GMC PM250 (1955)
- GMC PM250-24 (1954)
- GMC PM252 (1954-1955)
- GMC PM253 (1954-1955)
- GMC Suburban (1960-1962)
- GMC Truck (1953-1955)
- Hudson Hornet (1955-1957)
- Lincoln 66H Series (1946)
- Lincoln 76H Series (1947)
- Lincoln 876H Series (1948)
- Lincoln 9EL Series (1949)
- Lincoln Capri (1952)
- Lincoln Continental (1942)
- Lincoln Cosmopolitan (1949-1952)
- Lincoln Custom (1942)
- Lincoln Lincoln (1950-1951)
- Lincoln Zephyr (1942)
- Mercedes-Benz 600 (1964-1972)
- Mercury Custom (1952-1953)
- Mercury Mercury (1946-1952)
- Mercury Monterey (1950-1953)
- Nash Ambassador Custom (1955-1957)
- Nash Ambassador Super (1955-1957)
- Nash Rambler (1957)
- Packard Caribbean (1955-1956)
- Packard Clipper (1955-1956)
- Packard Executive (1956)
- Packard Four-Hundred (1955-1956)
- Packard Patrician (1955-1956)
- Pontiac Catalina (1950-1954)
- Pontiac Chieftain (1949-1954)
- Pontiac Laurentian (1955-1958)
- Pontiac Pathfinder (1955-1958)
- Pontiac Silver Streak (1948-1952)
- Pontiac Star Chief (1954-1958)
- Pontiac Strato-Chief (1958)
- Pontiac Streamliner (1946-1952)
- Pontiac Torpedo (1946-1948)
- Simca 1000 (1962-1968)
- Simca 1204 (1969-1971)
- Studebaker 2R10 (1949-1953)
- Studebaker 2R11 (1949-1953)
- Studebaker 2R16 (1949-1953)
- Studebaker 2R16A (1949-1953)
- Studebaker 2R17 (1949-1953)
- Studebaker 2R17A (1949-1953)
- Studebaker 2R5 (1949-1953)
- Studebaker 2R6 (1949-1953)
- Studebaker 3E1 (1958)
- Studebaker 3E10 (1958)
- Studebaker 3E11 (1958)
- Studebaker 3E11D (1958)
- Studebaker 3E12 (1958)
- Studebaker 3E12D (1958)
- Studebaker 3E13 (1958)
- Studebaker 3E14 (1958)
- Studebaker 3E5 (1958)
- Studebaker 3E6 (1958)
- Studebaker 3E6D (1958)
- Studebaker 3E7 (1958)
- Studebaker 3E7D (1958)
- Studebaker 3R10 (1954)
- Studebaker 3R11 (1954)
- Studebaker 3R16 (1954)
- Studebaker 3R17 (1954)
- Studebaker 3R28 (1954)
- Studebaker 3R38 (1954)
- Studebaker 3R5 (1954)
- Studebaker 3R6 (1954)
- Studebaker 4E1 (1959)
- Studebaker 4E11 (1959)
- Studebaker 4E11D (1959)
- Studebaker 4E12 (1959)
- Studebaker 4E12D (1959)
- Studebaker 4E13 (1959)
- Studebaker 4E14 (1959)
- Studebaker 4E2 (1959)
- Studebaker 4E2D (1959)
- Studebaker 4E3 (1959)
- Studebaker 4E3D (1959)
- Studebaker 4E5 (1959)
- Studebaker 4E7 (1959)
- Studebaker 4E7D (1959)
- Studebaker 5E11 (1960)
- Studebaker 5E12 (1960)
- Studebaker 5E12D (1960)
- Studebaker 5E13 (1960)
- Studebaker 5E13D (1960)
- Studebaker 5E5 (1955-1956, 1960)
- Studebaker 5E6 (1960)
- Studebaker 5E7 (1960)
- Studebaker 5E7D (1960)
- Studebaker 6E10 (1961)
- Studebaker 6E11 (1961)
- Studebaker 6E12 (1961)
- Studebaker 6E12D (1961)
- Studebaker 6E13 (1961)
- Studebaker 6E13D (1961)
- Studebaker 6E5 (1960-1961)
- Studebaker 6E7 (1961)
- Studebaker 6E7D (1961)
- Studebaker 7E10 (1962)
- Studebaker 7E11 (1962)
- Studebaker 7E5 (1962)
- Studebaker Champ (1960-1962)
- Studebaker Champion (1950-1958)
- Studebaker Commander (1950-1958)
- Studebaker Deluxe (1959)
- Studebaker E10 (1955-1956)
- Studebaker E11 (1955-1956)
- Studebaker E12 (1955-1956)
- Studebaker E13 (1955-1956)
- Studebaker E14 (1955-1956)
- Studebaker E15 (1955-1956)
- Studebaker E16 (1955-1956)
- Studebaker E17 (1955-1956)
- Studebaker E28 (1955-1956)
- Studebaker E38 (1955-1956)
- Studebaker E5 (1955-1956)
- Studebaker E6 (1955-1956)
- Studebaker E7 (1955-1956)
- Studebaker Flight Hawk (1956)
- Studebaker Golden Hawk (1956-1958)
- Studebaker Hawk (1960)
- Studebaker Lark (1959-1960)
- Studebaker M5 (1942-1948)
- Studebaker Police Car (1955-1956)
- Studebaker Power Hawk (1956)
- Studebaker President (1955-1958)
- Studebaker Scotsman (1958-1959)
- Studebaker Silver Hawk (1957-1959)
- Studebaker Sky Hawk (1956)
- Studebaker Taxi (1946-1960)
- Studebaker Transtar (1956-1958)
- Suzuki Aerio (2002)
FRAM C4 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM C4 Manufacturer Information
FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
FRAM C4 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
Related Searches
engine parts
filters parts
auxiliary engine oil filter
centifugal engine oil filter assembly
engine oil filter / cooler bracket socket
engine oil filter drain deflector
engine oil filter element
engine oil filter element o-ring
engine oil filter hose
studebaker engine oil filter
chevrolet engine oil filter
ford engine oil filter
