(888) 312-8812 Login SignupMERITOR 3133M6513K Steering Arm, 0.94 in. Small Hole Diameter, 1.75 in. Taper Diameter, 1.125-12 Nut Thread Size
$88399
30 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MERITOR 3133M6513K Part Description
Manufacturer
Product Description
Front Axle, Steering Arm And Keys
Features & Benefits
- Steering arm and keys arrive together for a matched mounting repair
- Forged arm body carries steering force into the front axle connection
- Key hardware renews the locating surfaces that keep the arm seated
- Front-end looseness can be addressed at the arm interface, not only linkage ends
- Combined set prevents old keys from weakening a newly installed steering arm

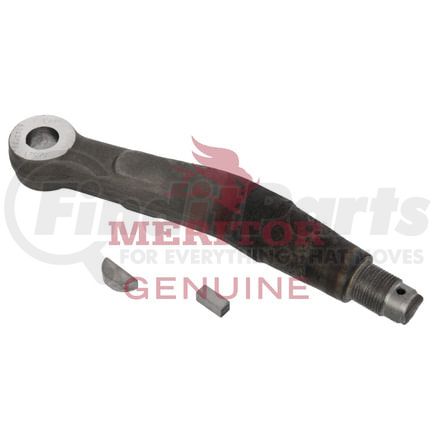

Meritor Steering Arm and Key Set
The Meritor Steering Arm and Key Set replaces the front axle steering arm together with the keys that locate it at the mounting interface. This pairing matters because a fresh arm can still sit poorly if old key hardware is reused after removal. The arm feels like a compact forged steering part with enough mass to show its job: carry steering force into the axle-end connection. During front-end work, worn keyways, damaged arm seating, or loose steering response can make the set a better repair choice than the arm alone. The Meritor 3133M6513K rebuilds the steering connection with both the force-transfer piece and its locating hardware.
| Axle Model | FG941 |
| Forging | 3133R3398 |
| Length | 9.87 in. |
| Nut Thread Size | 1.125-12 |
| Offset | 1.59 in. |
| Related Nut | 1227Z1716 |
| Small Hole Diameter | 0.94 in. |
| Taper Diameter | 1.75 in. |
| VMRS Code | 015-004-031 |
Meritor Steering Tie Rod Arm
The Meritor steering tie rod arm is designed with strength and durability in mind. It is recommended for use with genuine Meritor OEM tie rod ends.
Features & Benefits
- Meets or exceeds OEM specifications for heavy duty truck applications
- Supports a wide range of motion with the tie rod end
- Complies with or exceeds international quality and safety standards
- Combined set prevents old keys from weakening a newly installed steering arm
MERITOR 3133M6513K Specifications
Product Attributes
| Axle Model | FG941 |
| Brand | Meritor |
| Forging | 3133R3398 |
| Height | 0.64 in. |
| Length | 9.87 in. |
| Nut Thread Size | 1.125-12 |
| Offset | 1.59 in. |
| Pallet Quantity | 240 |
| Related Nut | 1227Z1716 |
| Small Hole Diameter | 0.94 in. |
| Taper Diameter | 1.75 in. |
| Weight | 7.20 |
| Length | 9.87 in. |
MERITOR 3133M6513K Cross References
| Brand | Part Number |
|---|---|
| 202911R1, 3133M6513KRI, 82353133M6513K, ATI3133M6513K, TDA3133M6513K |
