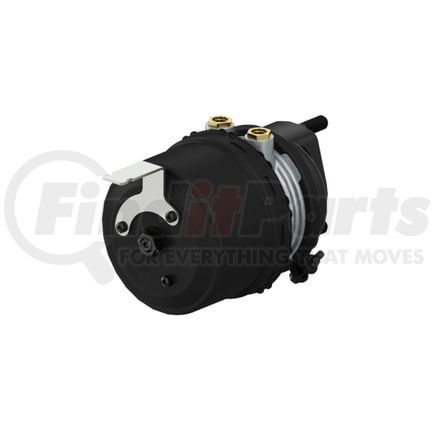

WABCO 9254880100 - Air Brake Spring Brake Cylinder Assembly - Tristop-Cylinder Disc G-14/24
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
WABCO part description
Product Attributes
| Type | 14/24 |
| Push-Rod Length | 15 mm |
| Max. operating pressure | 147.94 / 123.28 psi |
| Distance between bolts | 120.6 mm |
| Return-Spring Force | 220 N |
| Max. operating pressure | 147.94 / 123.28 psi |
| Calculated Volume (dm³) | 13.678 |
| Total Length | 252.0 mm |
| Release Pressure | 5.1 bar |
| Weight | 17.216 |
| Size | 379 x 187 x 193 |
| Bolt Lengths | 43.0 mm |
| Stroke | 57/57 mm |
| Temperature Range | -40°C to +80°C |
| Push-rod thread | Ball R8 |
| Port threads | M22 x 1.5 |
| Output Force M | 6920 N |
| Type Of Operation | Disc |
| Bolt Threads | M16 x 1.5 |
| Port thread 12 | M22 x 1.5 JED - 388 |
| Port thread 11 | M22 x 1.5 JED - 388 |
WABCO 9254880100 Cross Reference
We have 4 alternatives for the 9254880100 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
