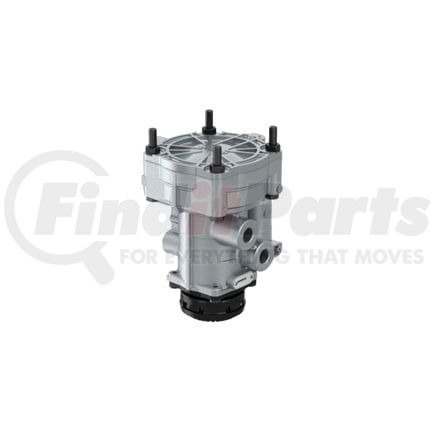

(888) 312-8812 Login SignupWABCO 9730090100 Trailer Brake Control Valve
Tap to view 3 more
$1,42249
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 9730090100 Part Description
WABCO 9730090100 Specifications
Product Attributes
| Size | 209 x 139 x 139 |
| Predominance | 0.40 bar |
| Max. operating pressure | 8.5 bar |
| Weight | 4.7708 |
| Distance between bolts | 85x85 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Exhaust | Silencer |
| Mounting | 4x M8 |
| Port Thread 43 | M16 x 1.5 |
| Calculated Volume (dm³) | 4.038 |
| Port Thread 42 | M16 x 1.5 |
| Port Thread 41 | M16 x 1.5 |
| Multi Nominal Diameter (From Port 1 To X) | 9 mm |
| Temperature Range | -40°C to +80°C |
| Port thread 12 | M16 x 1.5 |
WABCO 9730090100 Cross References
| Brand | Part Number |
|---|---|
| 1350096 | |
| DAF | 1504970 |
| MERITOR | S9730090100 |
| RENAULT | 5021170461 |
| SCANIA | 571194 |
| VOLVO | 20424432 |
WABCO 9730090100 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 9730090100 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
