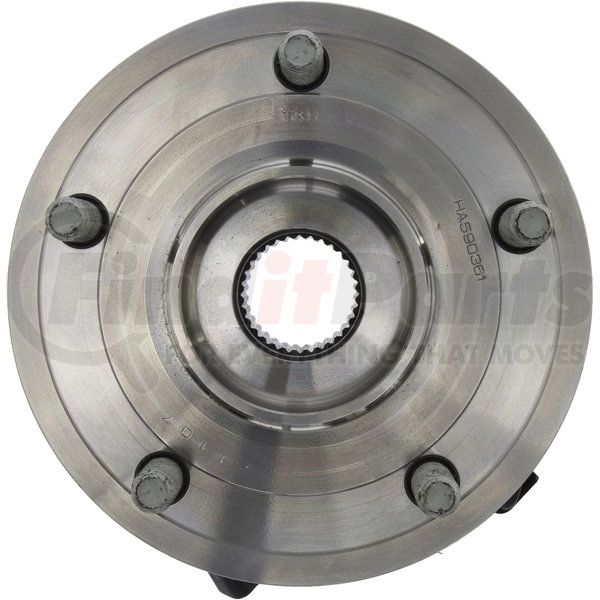

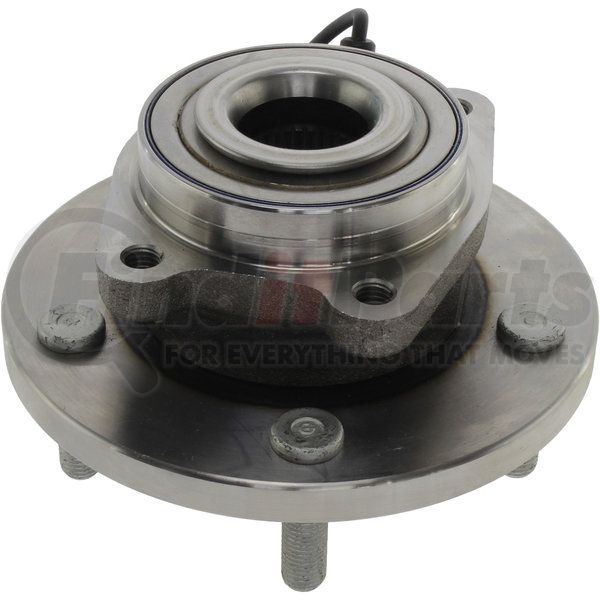

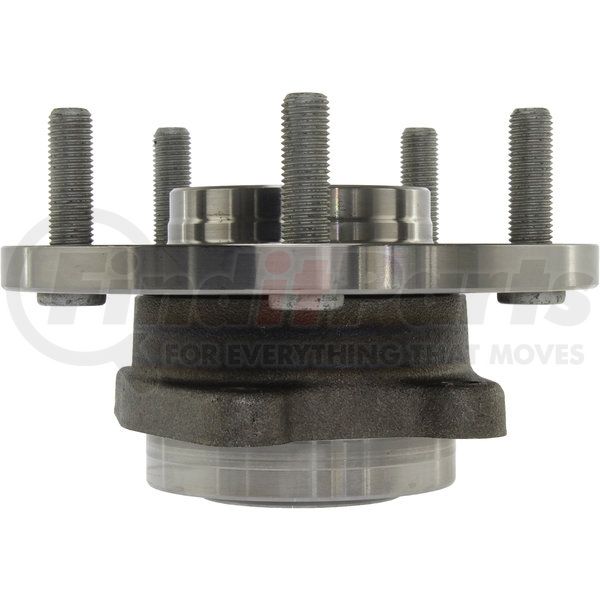

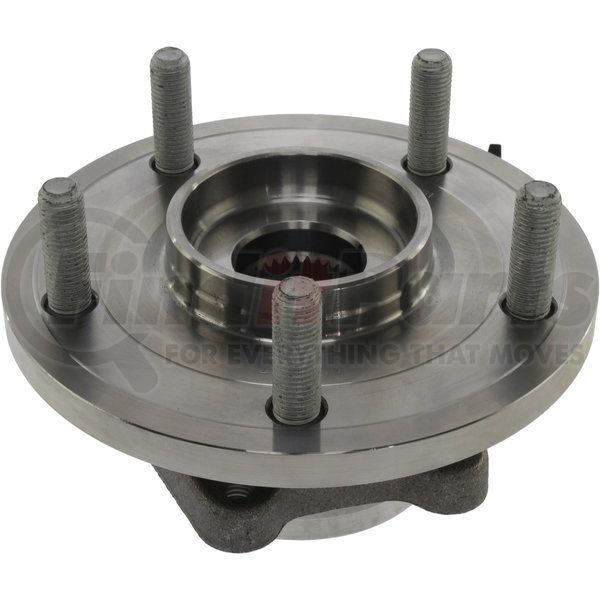

Centric 402.63006 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$15199
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Off-set [cntrc] Mm | 1.910 |
| Mounting Hole Qty [cntrc] | 4 |
| Off-set [cntrc] In | 48.510 |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |

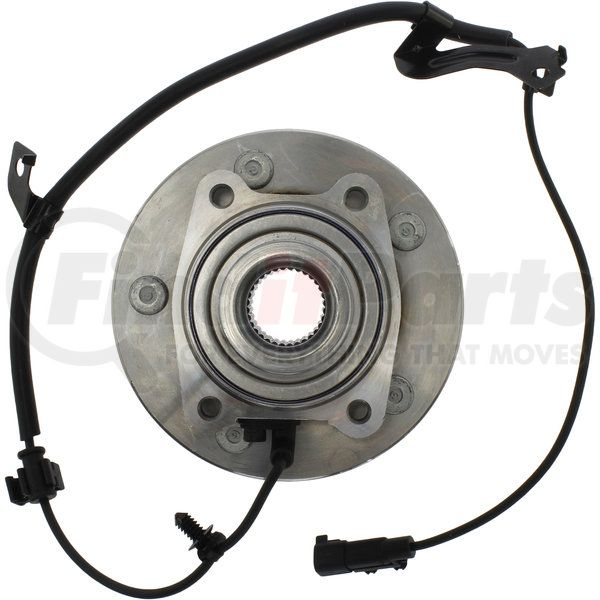

| Notes [cntrc] | Has Removeable ABS Sensor inc harness and brackets (R) - Use Splined Hub Version |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 3.340 |
| Inner Mount Pilot [cntrc] Mm | 84.840 |
| Product Grade [cntrc] | Premium |
| Spline Quantity | 32 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 71.400 MM |
| Wheel Pilot Diameter | 2.811 IN |
| Brake Pilot Diameter | 72.360 MM |
| Brake Pilot Diameter | 2.851 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.365 IN |
| Flange Diameter | 161.670 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890707899 |
Part Interchanges
Fits Vehicles
- Dodge Journey (2009-2019)
