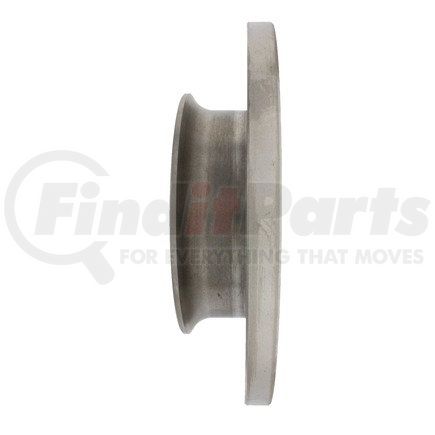

CENTRIC 121.33024 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 121.33024 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Kgs | 5.680 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 12.500 |
| Discard Thickness | 0.512 IN |
| Discard Thickness | 13.000 MM |
| Nominal Thickness | 0.630 IN |
| Nominal Thickness | 16.000 MM |
| Overall Height | 57.500 MM |
| Overall Height | 2.264 IN |
| Outside Diameter | 258.000 MM |
| Outside Diameter | 10.157 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.616 IN |
| Stud/Lug Hole Diameter | 15.650 MM |
| Hat Finish | Bare |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890826606 |
CENTRIC 121.33024 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 416109 |
| N/A | BD60865, 0832341, E125-38-029, E126-38-029, 3481, 121.33024, 64 16 120, 3481G, 251407615, 251407615B, 251407615Q, 141751, PRT1751, 117810, 4886344, 86344, 1098, EBR252, D17505, E12538029, 1.5817.1.5, X50641, 25145, BR1645, 96344, 96344R, DDF424, 8994004, 142728, 60074038, 600.1598.00 |
| RAYBESTOS | 96344R |
CENTRIC 121.33024 Fits Vehicles
- Volkswagen Vanagon (1986-1991)
