ATE BRAKE PRODUCTS 416109 Part Description
Manufacturer
Product Description

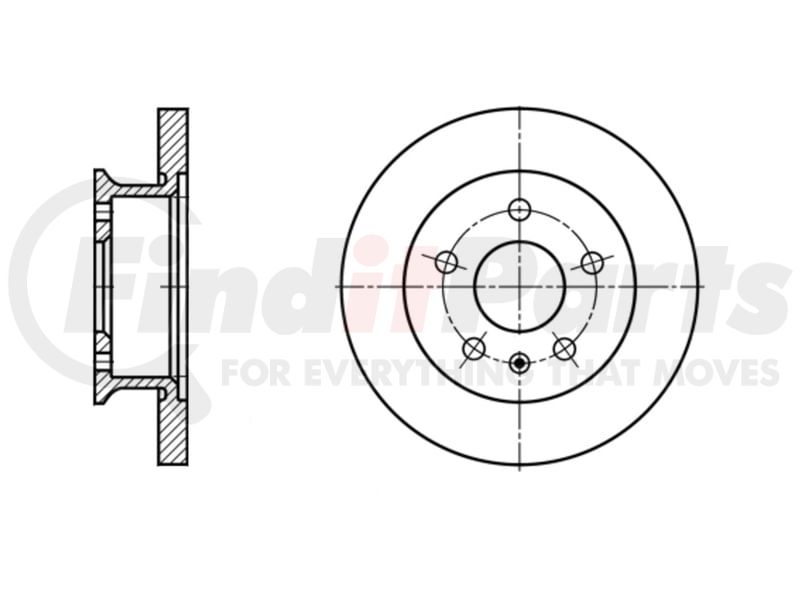

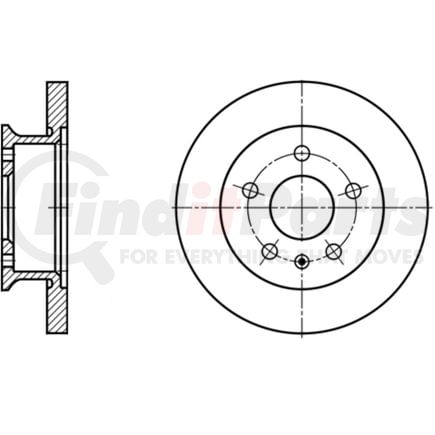

ATE Original Front Disc Brake Rotor 416109 for Volkswagen
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 416109 Specifications
Product Attributes
| Outside Diameter | 258.00 MM |
| Inside Diameter | 135.00 MM |
| Nominal Thickness | 16.00 MM |
| Discard Thickness | 13.00 MM |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 57.50 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 112.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.50 MM |
| Center Hole Diameter | 67.00 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | CZ |
| EU | |
| UPC | 04006633138888 |
ATE BRAKE PRODUCTS 416109 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A575 |
| Bendix | 561493B, PRT1751 |
| Bosch | 0 986 478 544, 53011398 |
| Brembo | 08.5396.10 |
| Centric Parts | 121.33024 |
| Delphi | BG2602, BG602 |
| Febi-Bilstein | 11389 |
| Ferodo America | DDF424, DDF424-1 |
| Hella | 53918, 8DD 355 101-341 |
| Jurid | 561493J |
| Qualis | 3481 |
| Raybestos Brakes | 96344R |
| TRW | DF1544 |
| Textar | 92037000, 98200 0370 0 1 |
| Valeo | 186518, 186770 |
| Volkswagen | 251407615B, 251407615Q |
| Winhere | 441556 |
| Zimmermann | 600.1598.00 |
ATE BRAKE PRODUCTS 416109 Fits Vehicles
- Volkswagen Vanagon (1986-1991)
