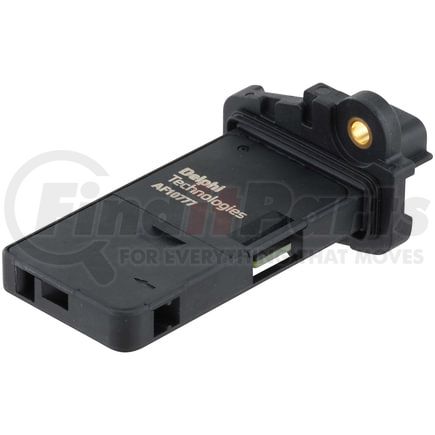

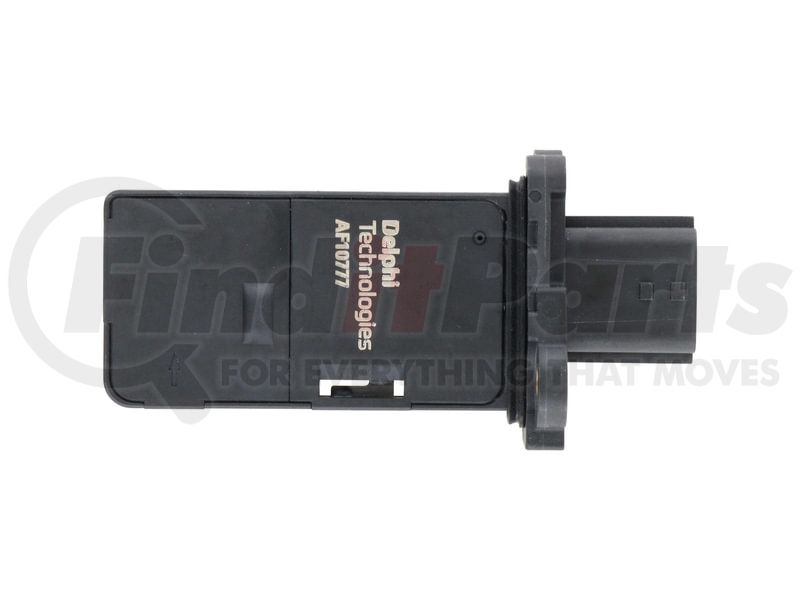

(888) 312-8812 Login SignupDELPHI AF10777 Mass Air Flow Sensor
Tap to view 7 more
$17399
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jun 25
DELPHI AF10777 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
Mass Air Flow Sensor
DELPHI AF10777 Specifications
Product Attributes
| Sensor Casing Length | 47.0 MM |
| Sensor Casing Width | 43.0 MM |
| Intake Air Temperature (IAT) Included | Yes |
| Voltage | 5.0 2H |
| Color | Black |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Bolt Hole Center To Bolt Hole Center | 40.17 MM |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Hole Diameter | 4.5 MM |
| Mounting Type | Bolt On |
| Mounting Bracket Included | No |
| Seal Outside Diameter | 39.4 mm |
| Seal Quantity | 1 |
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Bolt Hole Center To Bolt Hole Center | 1.58 IN |
| Seal Outside Diameter | 1.5 IN |
| Sensor Casing Length | 1.8 IN |
| Sensor Casing Width | 1.6 IN |
| Mounting Hole Diameter | 0.1 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance | 12000 |
| Warranty Distance UOM | DH |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00689604370261 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10777 Cross References
| Brand | Part Number |
|---|---|
| N/A | 214844, MA1341, 1525A079, 22680-6CA0B, 5S15668, MAS0508, 22680-5NA0A |
DELPHI AF10777 Fits Vehicles
- INFINITI QX60 (2022-2023)
- Nissan Pathfinder (2022-2023)
- INFINITI QX55 (2022-2023)
- Nissan Rogue (2021)
- Nissan Sentra (2020-2023)
- Nissan Altima (2019-2023)
- INFINITI QX50 (2019-2023)
DELPHI AF10777 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI AF10777 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
DELPHI AF10777 Questions & Answers
No questions yet
Be the first to ask a question about this product!
